Repair Price: $ 1,936.00
Purchase
CSL Part Number: 84541

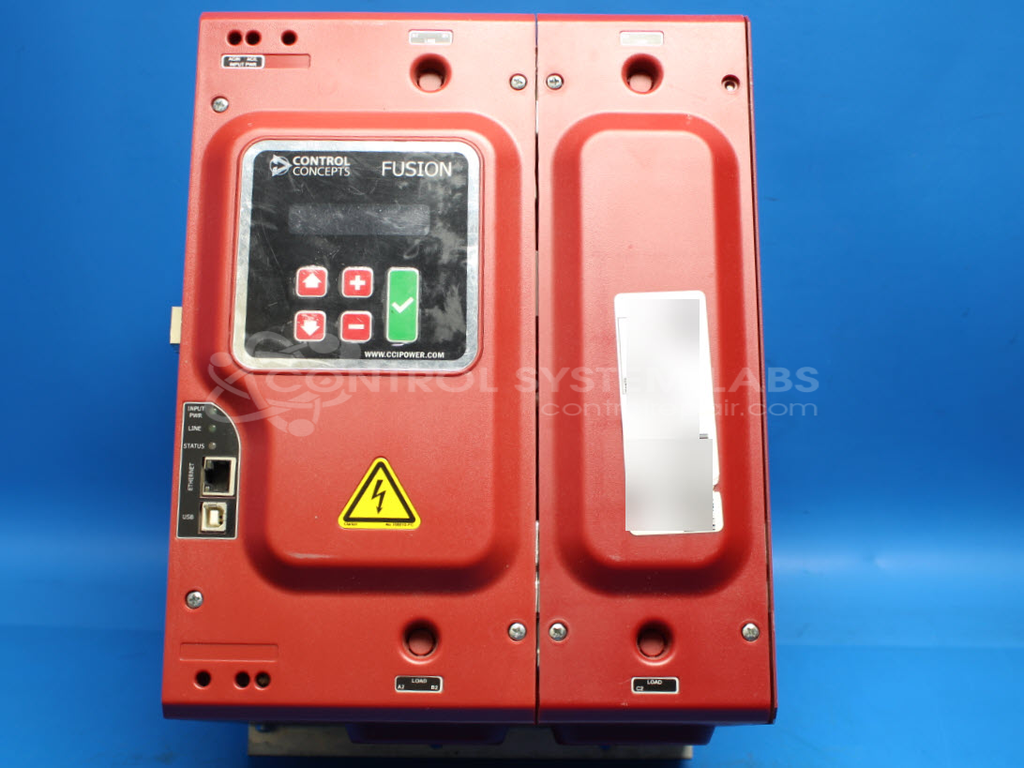

Product Overview: The Compact Fusion CF-PA-3-7770-I is a 160-amp SCR power controller manufactured by Control Concepts for precise control of resistive heating loads. It features phase-angle or zero-cross firing modes with USB connectivity for configuration and monitoring. Typical applications include industrial heating processes in plastics, packaging, food processing, and paper manufacturing where accurate temperature control is critical. The unit incorporates thyristor modules for current switching and includes protective fusing rated for 600V operation.
Category: Power Controls
Manufacturer: Control Concepts
Manufacturer Synonyms: C3 Controls
Manufacturer Part Number: CF-PA-3-7770-I-0000-0000
Series: Compact Fusion Power Controller
Common Failures
Issues reported with this product are often related to component wear or physical damage over time. Examples include capacitor deterioration in the power supply, USB connector damage, and thyristor module failures.
Repair Approach
Repairs typically involve replacing defective components identified during evaluation. Depending on the findings, additional components may be replaced as part of preventative maintenance to support continued reliability. Each repair is based on the specific condition of the unit as received.
Testing & Quality
After repairs are completed, units undergo diagnostic and quality assurance testing. This may include functional tests, load tests, and verification that repaired components meet operational specifications. Each unit is reviewed before it is returned.
Service and repair your broken Control Concepts part
We can repair your Control Concepts model CF-PA-3-7770-I-0000-0000 in our facility. Let our skilled technicians get your Control Concepts back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
