Repair
Repair Price: $ 3,600.00
Purchase
CSL Part Number: 82082

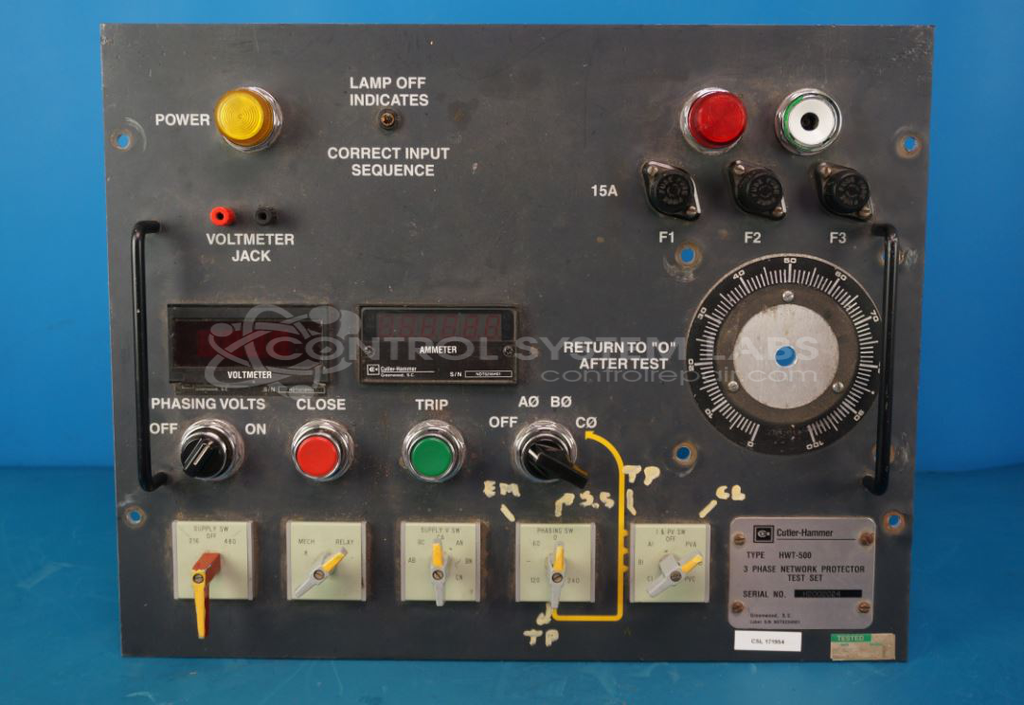

Product Overview: The Cutler-Hammer HWT-500 is a portable three-phase network protection test set designed for testing and calibrating protective relays and metering equipment in electrical power systems. It provides adjustable voltage and current outputs to simulate fault conditions and verify relay operation in substations, switchgear, and distribution panels. The unit generates controlled test signals for checking overcurrent, directional, differential, and distance protection schemes. It features independent phase control, reverse current testing capability, and built-in metering for monitoring output parameters during relay commissioning and maintenance work.
Category: Test Equipment
Manufacturer: Cutler-Hammer
Manufacturer Synonyms: Eaton, Cutler-Hammer IDT
Manufacturer Part Number: HWT-500
Common Failures
This product may experience issues with reverse current functionality. Symptoms can include abnormal voltage appearing on metal parts of the chassis when energized.
Repair Approach
We evaluate each unit to identify faulty components. Repairs may include component replacement and physical repairs as necessary. Once the unit is received and reviewed, we can provide a quotation before any repair work begins.
Testing & Quality
After repairs, units undergo comprehensive testing to verify proper operation. All units are powered and tested thoroughly under different conditions.
Repair your broken Cutler-Hammer part
We can repair your Cutler-Hammer model HWT-500 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
