Repair
Call for price
Purchase
CSL Part Number: 85572

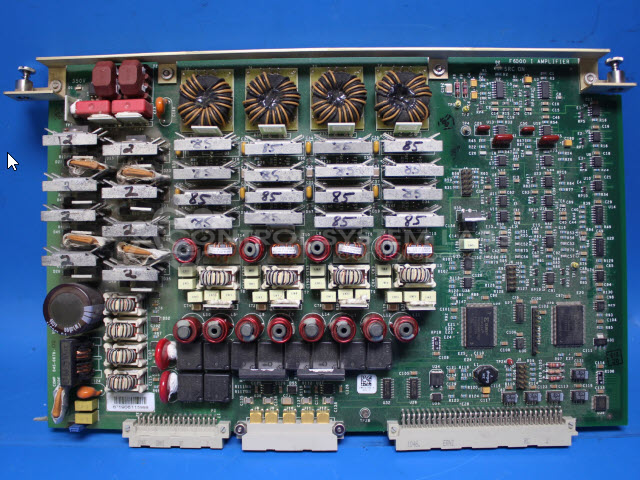

Product Overview: The F6000 I Amplifier Card is a control board used in Doble Engineering's F6000 Power System Simulators. It provides amplification functions for power system testing and simulation applications. This enhanced revision features current amplification circuitry with protective components including Schottky barrier diodes and fast-acting fuses. The card operates within power system test equipment used for relay testing, protective device evaluation, and power system analysis in electrical utilities and testing laboratories.
Category: Control Board
Manufacturer: Doble Engineering
Manufacturer Part Number: 04S-0678-02 Rev M
Series: F6000 Power System Simulators
Include problem with the control. Warranties to repaired section only.
Common Failures
Issues with this product often include arcing related to the diode and short circuits. A problematic connection between the heatsink and diode can lead to blown fuses.
Repair Approach
Repairs typically involve replacing the affected components, such as damaged diodes and fuses. Any burn damage from arcing is thoroughly cleaned and repaired.
Testing & Quality
After repairs, the unit undergoes a series of tests to confirm the integrity of the repair. These include power application and component checks to verify proper operation.
Repair your broken Doble Engineering part
We can repair your Doble Engineering model 04S-0678-02 Rev M .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
