Repair
Repair Price: $ 1,672.00
Purchase
CSL Part Number: 75344

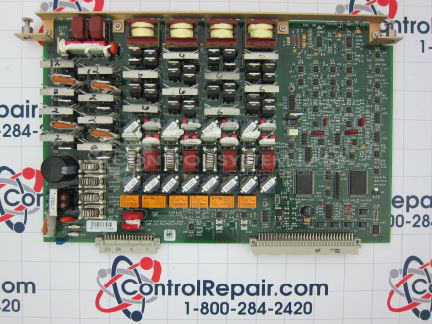

Product Overview: The F6000 VI Amplifier Card is a voltage and current amplification control board used in Doble F6000 series power system simulators, including the F6150 model. It provides precision signal amplification for testing protective relays and power system equipment in utility substations and electrical testing laboratories. The card features power MOSFETs for high-voltage switching and fused power inputs for circuit protection. It works as part of Doble's modular test set architecture to generate accurate voltage and current waveforms for relay calibration and commissioning.
Category: Control Board
Manufacturer: Doble Engineering
Manufacturer Part Number: 04S-0679-02 REV. M
Series: F6000 Power System Simulators
Include problem with the control. Warranties to repaired section only.
```html
Common Failures
Units may experience faults related to voltage control board functionality. Such faults can affect normal operation and may require component-level evaluation and repair.
Repair Approach
Our repair process involves evaluating the voltage control board and replacing failed components as needed. Common replacements may include fuse board mounts and MOSFET components. Once the unit is received and reviewed, we can provide a quotation before any repair work begins.
```Limited Repair
The Doble Engineering part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Doble Engineering part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
