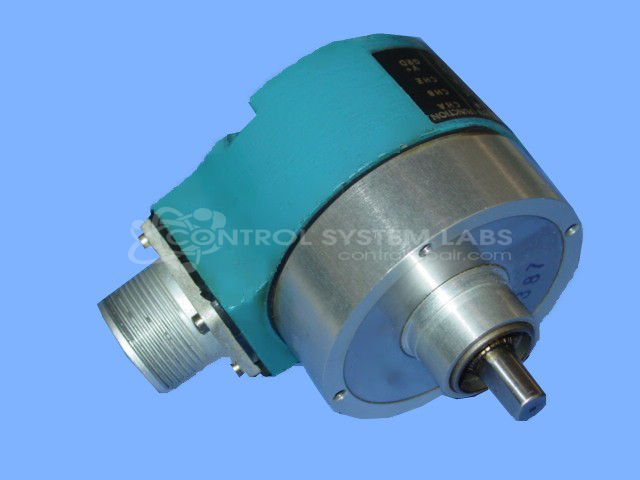

Dynamics Research 39R-11-B13-1000P Single Shaft Right Angle Encoder

Repair

Repair Price: $ 624.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/72723/image_1920?unique=5d30da2
  • Condition

Purchase Price: $ 0.00 $ 0.00 624.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 47282
Product Overview: A single shaft, right angle incremental rotary encoder that converts shaft rotation into electrical pulse signals for position, speed, and direction feedback. Rated at 1000 pulses per revolution with quadrature A and B outputs 90 degrees apart at 50% duty cycle, it is used in industrial motion control and machinery.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynamics Research
Manufacturer Part Number: 39R-11-B13-1000P

```html

Common Failures

One common issue observed in this type of unit is failure of an integrated circuit, which can result in a lack of output signals.

Repair Approach

The repair involved replacing the faulty integrated circuit. Additional measures included resoldering connections and cleaning the control board.

Testing & Quality

Post-repair testing confirmed functionality, with outputs correctly leading in phase and maintaining the correct duty cycle.

```

Service and repair your broken Dynamics Research part


We can repair your Dynamics Research model 39R-11-B13-1000P in our facility. Let our skilled technicians get your Dynamics Research back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
