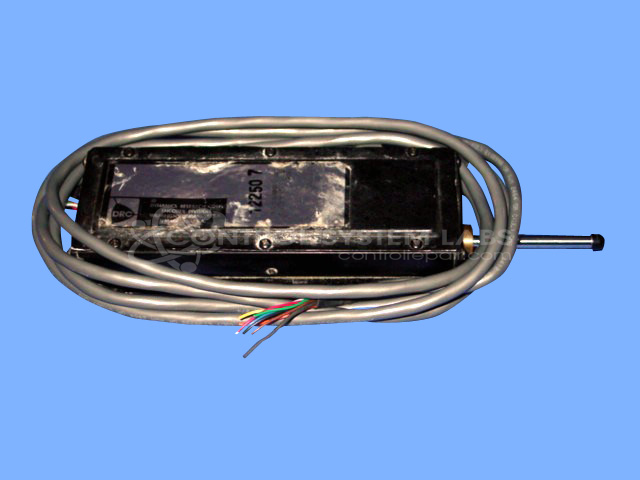

Dynamics Research SST-11-H2-B06Z Probe Type Linear Encoder
Repair
Repair Price: $ 676.00
Purchase
CSL Part Number: 32490
Product Overview: A probe type linear encoder that converts linear position or displacement into electrical pulse signals for precise measurement and feedback. It provides quadrature outputs with A/B channels offset by 90 degrees plus a marker pulse, commonly used in paper machinery and industrial motion control systems.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynamics Research
Alternate Manufacturer Names: GSI LUMONICS
Manufacturer Part Number: SST-11-H2-B06Z
Other Synonyms: GSI LUMONICS
Common Failures
Customers commonly report output problems, particularly issues with marker pulses not functioning as expected.
Repair Approach
The repair process may involve replacing defective components, resoldering connections, repairing wiring, and thoroughly cleaning the unit. Additional components such as connectors or pigtails may also be replaced as needed to restore functionality.
Testing & Quality
Following repair work, the unit undergoes testing to confirm proper operation. Tests may include validating pulse duty cycles and leading edges to ensure synchronization. A burn-in test is conducted to verify stable performance.
Service and repair your broken Dynamics Research part
We can repair your Dynamics Research model SST-11-H2-B06Z in our facility. Let our skilled technicians get your Dynamics Research back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
