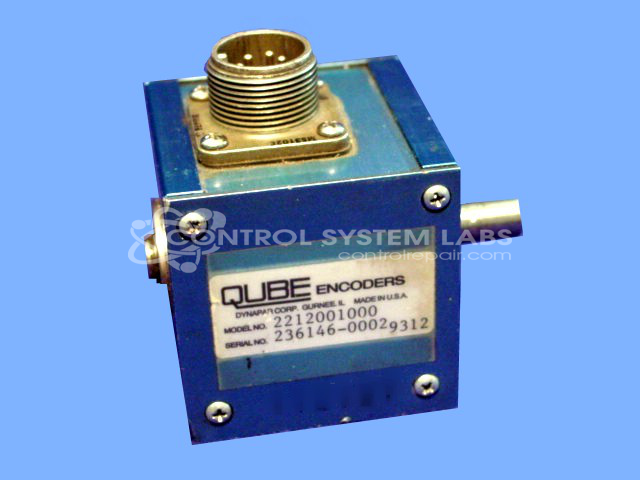

Dynapar 2212001000 Qube Rotary Encoder
Repair
Repair Price: $ 392.00
Purchase
CSL Part Number: 20541
Product Overview: A bidirectional incremental rotary encoder that converts shaft rotation into quadrature A and B output pulses for position, speed, and direction feedback. Features 50% duty cycle outputs with channels offset 90 degrees. Commonly used in motion control and industrial machinery for closed-loop feedback.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: 2212001000
Series: Qube Encoder
Common Failures
Common repair findings have included no output signal, corrosion around output components, control connection issues, and intermittent operation. In some cases, units were returned without repair at the customer's request.
Repair Approach
Typical repairs involve cleaning, component replacement, and connection verification. Examples include output component replacement or cleaning and control plug reseating when disengaged. When intermittent failures are reported, thorough cleaning and inspection are performed even if the issue cannot be immediately replicated.
Testing & Quality
Following repair work, units undergo testing to verify functionality. Testing may include output signal verification, duty cycle confirmation, and burn-in testing. Repaired units are confirmed to function per design specifications before return.
Service and repair your broken Dynapar part
We can repair your Dynapar model 2212001000 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
