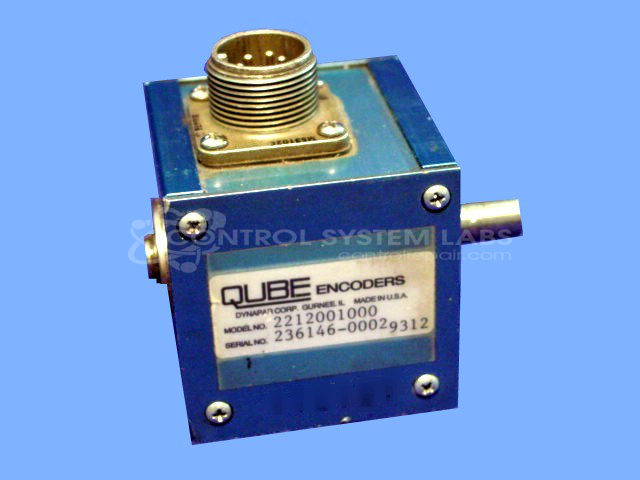

Dynapar 2212003000 Qube Rotary Encoder

Repair

Repair Price: $ 428.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/32646/image_1920?unique=cf9a427
  • Condition

Purchase Price: $ 0.00 $ 0.00 428.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 13286
Product Overview: A bidirectional optical rotary encoder that converts shaft rotation into quadrature A and B digital pulses for position, speed, and direction feedback. Commonly used on motors and automated machinery in motion control and industrial systems.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: 2212003000
Series: Qube Encoder

Common Failures

Common issues include missing or incorrect signal outputs, disconnected ribbon cables, bent shafts, and defective optics. Corrosion and dirt accumulation have also been observed. These symptoms can lead to diminished functionality or complete non-operational states of the unit.

Repair Approach

Repairs typically involve reconnecting or replacing components such as output and driver integrated circuits, ribbon cables, and potentiometers. Necessary actions include cleaning, lubricating bearings, and resoldering connections to restore unit functionality. In cases of severe damage or unrepairable conditions, units are labeled as Beyond Economic Repair (BER) and returned to the customer.

Testing & Quality

After repairs, units undergo testing for accuracy, signal output levels, and phase relationships. Testing ensures that all repairs meet required performance standards, with typical outputs adjusted for a 50% duty cycle where applicable. Units are released when they are confirmed to function as designed.

Service and repair your broken Dynapar part


We can repair your Dynapar model 2212003000 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
