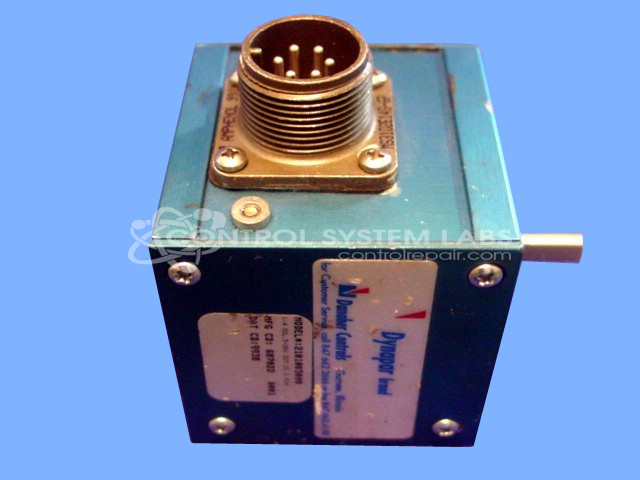

Dynapar 3102003000 Encoder / Single Shaft

Repair

Repair Price: $ 428.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/45837/image_1920?unique=f03f88e
  • Condition

Purchase Price: $ 0.00 $ 0.00 428.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 26897
Product Overview: A single-shaft incremental rotary encoder that converts shaft rotation into quadrature pulse outputs (channels A and B, 90 degrees out of phase) for motion and position feedback. Commonly used in paper machinery and industrial drive systems requiring speed and directional sensing.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: 3102003000

Common Failures

Units commonly presented with output pulses out of adjustment or the absence of pulse B output.

Repair Approach

The repair process typically involved cleaning, resoldering, and adjusting outputs to achieve proper duty cycle specifications. Bearings were repacked when needed. In some cases, modifications were made to enable pulse B output where required.

Testing & Quality

Each repaired unit was tested to verify proper operation before return to the customer.

Service and repair your broken Dynapar part


We can repair your Dynapar model 3102003000 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
