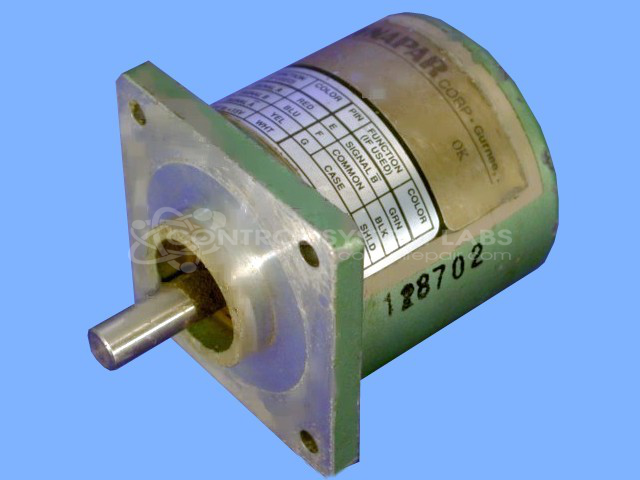

Dynapar 42 Single Shaft Encoder

Repair

Repair Price: $ 448.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/26491/image_1920?unique=6b10fb2
  • Condition

Purchase Price: $ 0.00 $ 0.00 448.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 6959
Product Overview: A single-shaft rotary encoder that converts mechanical rotation into electrical pulse signals for position, speed, and direction feedback in industrial motion control. It provides quadrature outputs with channel A leading B by 90 degrees at 50% duty cycle, commonly used in paper-handling and automation equipment.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: 42

Common Failures

A known issue with this product is a lack of output signal, frequently caused by open coils and poor solder joints.

Repair Approach

The typical solution involves replacing the affected coil, resoldering connections, and thoroughly cleaning the area. These steps are intended to restore the unit to proper function.

Testing & Quality

After repair, the product is adjusted to ensure all outputs are functioning at an appropriate 50% duty cycle, with proper signal timing. Each unit undergoes thorough testing to confirm it performs as designed.

Service and repair your broken Dynapar part


We can repair your Dynapar model 42 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
