CSL Part Number: 105097

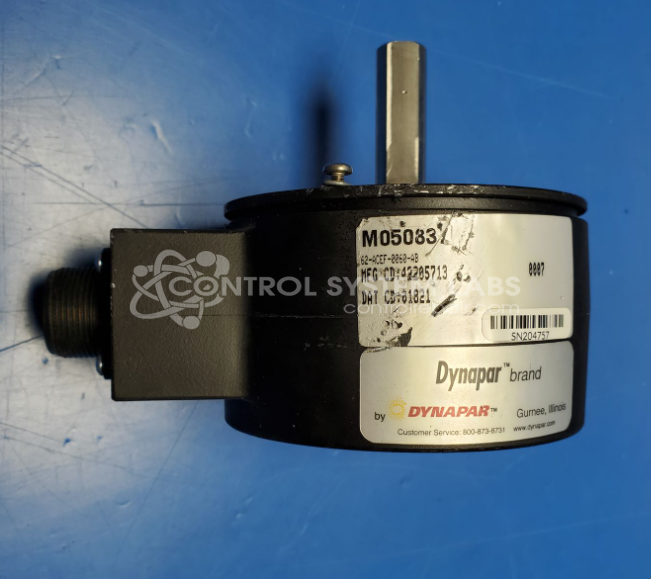

Product Overview: The Dynapar Series 60 Rotopulser is an incremental rotary encoder that generates 60 pulses per revolution with bidirectional counting capability. It outputs quadrature signals (A and B channels at 90-degree phase shift with 50% duty cycle) plus a marker pulse for position and speed feedback. This encoder features a 1/2-inch shaft and is commonly used in paper processing machinery, motor control systems, and industrial automation applications requiring moderate resolution position tracking. The optical design with shielded ball bearings provides reliable performance in manufacturing environments.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: 62-ACEF-0060-AB
Series: Series 60 Rotopulser
Also Known As(AKA): M050837
Common Failures
Dynapar encoders commonly exhibit issues related to bearings and shaft condition. Other observed problems include missing components such as rubber boots, and occasional inaccuracies in reading, which can be traced back to physical damage or wear.
Repair Approach
Our repair process typically involves bearing replacement and necessary cleaning. Adjustments are made to ensure outputs function at an optimal 50% duty cycle, with specific attention to aligning encoder pulses accurately. In cases of physical damage, components such as shafts may be addressed to restore functionality. We can evaluate each unit and provide a quotation before any repair work begins.
Testing & Quality
Following repairs, encoders undergo comprehensive testing, including burn-in testing. Each unit is verified to ensure accurate pulse alignment, with outputs checked to confirm a 50% duty cycle where 'A' leads 'B' by 90 degrees. Repaired encoders are tested to verify reliability and performance.
Service and repair your broken Dynapar part
We can repair your Dynapar model 62-ACEF-0060-AB in our facility. Let our skilled technicians get your Dynapar back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
