Repair
Repair Price: $ 400.00
Purchase
CSL Part Number: 22570

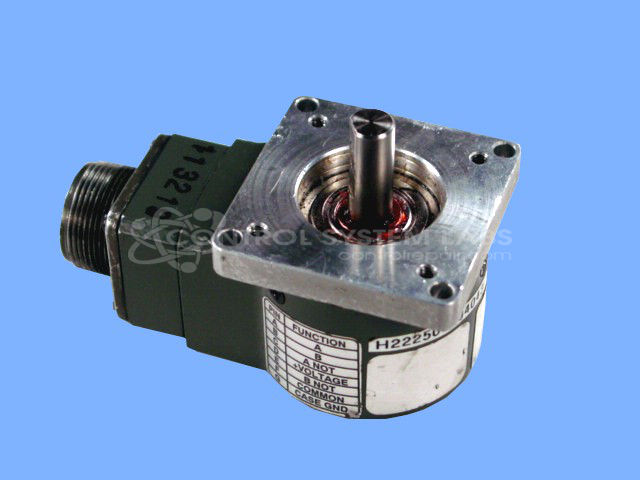

Product Overview: The Dynapar H20 Series Encoder is a bidirectional rotary encoder used for position and motion feedback in industrial applications. Part number H222500104043 represents a specific configuration within the H20 family. These encoders are commonly found in paper processing equipment and other machinery requiring precise shaft position or speed measurement. The H20 series features a compact housing and is designed for mounting directly to motor shafts or driven equipment.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: H222500104043
Series: H20 Series Encoder
Common Failures
Rotary encoders may experience internal damage that can affect operation. Common causes include physical impact, which may lead to disk misalignment or breakage.
Repair Approach
In cases where the internal disk of a rotary encoder is damaged, repair options may be limited. We will evaluate the unit and provide a quotation before any repair work begins. In some cases, a unit may be Beyond Economic Repair.
Recycling and Disposal Options
If a rotary encoder is Beyond Economic Repair, customers may choose to have the unit recycled or returned without repair. We can discuss options following evaluation of the device.
Service and repair your broken Dynapar part
We can repair your Dynapar model H222500104043 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
