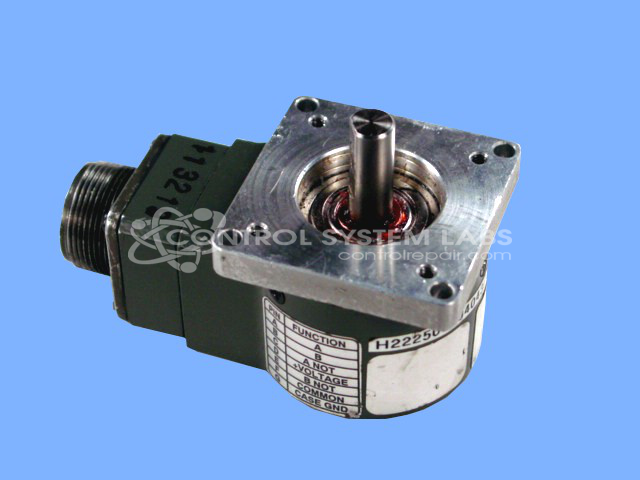

Dynapar H222500104043PS H20 Encoder

Repair

Repair Price: $ 420.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/47829/image_1920?unique=f4b635c
  • Condition

Purchase Price: $ 0.00 $ 0.00 420.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 28968
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: H222500104043PS
Series: H20 Series Encoder

Common Failures

Common issues include malfunctioning integrated circuits and physical damage to capacitor lead positioning. Symptoms can include improper unit function and incorrect pulse duty cycles.

Repair Approach

Repairs typically involve replacing faulty integrated circuits and adjusting physical components to restore proper operation. Key procedures include resoldering connections, cleaning the unit, and adjusting pulse settings to achieve the specified duty cycle.

Testing & Quality

After repairs, units undergo testing to confirm functions meet design specifications, including verification that pulse outputs maintain the specified duty cycle. These procedures help restore the units to their intended operation.

Service and repair your broken Dynapar part


We can repair your Dynapar model H222500104043PS in our facility. Let our skilled technicians get your Dynapar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
