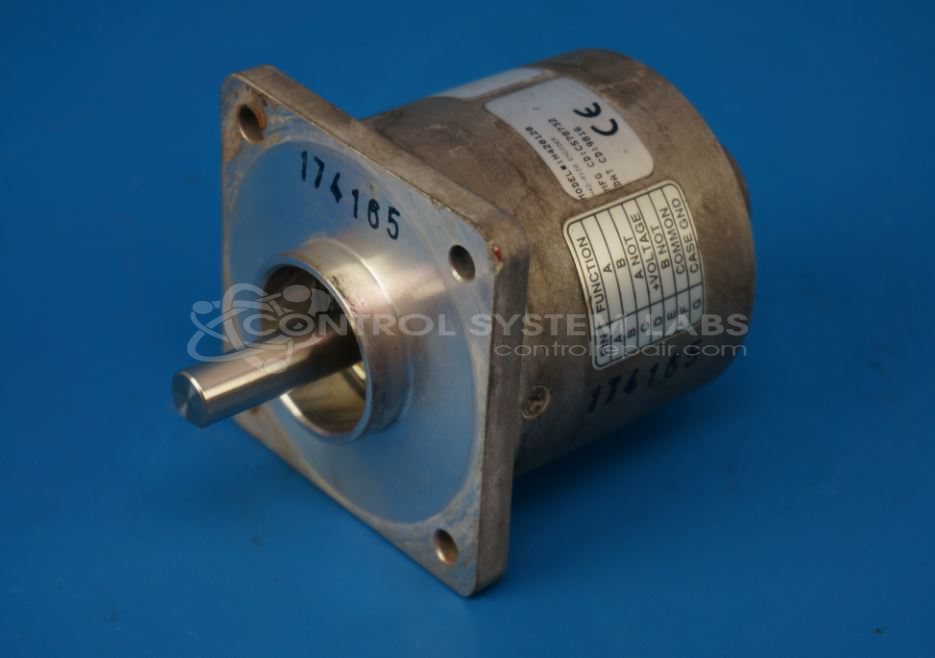

Dynapar H420120 Opal Optical Encoder

Repair

Repair Price: $ 428.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/35416/image_1920?unique=815a335
  • Condition

Purchase Price: $ 0.00 $ 0.00 428.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 16091
Product Overview: An optical rotary encoder that converts shaft rotation into electrical pulse signals for position, speed, and direction feedback. It provides quadrature A and B channel outputs, with B leading or lagging A by 90 degrees to indicate direction. Commonly used in paper machinery and industrial motion control.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: H420120
Also Known As(AKA): OPAL ENCODER

Common Failures

Customers frequently report output problems with this product. The issues have been attributed to problems with pulse adjustments and faulty optics components.

Repair Approach

In cases where pulse adjustments are needed, technicians verify that the pulses are balanced to a 50% duty cycle and that phase alignment is correct. These adjustments have successfully resolved output issues in many cases.

Testing & Quality

After repairs, products are tested and undergo reliability verification by burning in for two hours, ensuring that any adjusted or replaced components operate correctly. These tests verify lead and phase alignment accuracy.

Service and repair your broken Dynapar part


We can repair your Dynapar model H420120 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
