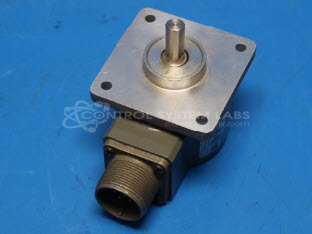

Dynapar HR625 0512 0241 HR25 Single Shaft Encoder

Repair

Repair Price: $ 476.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/82888/image_1920?unique=cb5223b
  • Condition

Purchase Price: $ 0.00 $ 0.00 476.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 72551
Product Overview: A heavy-duty single-shaft incremental rotary encoder providing position and speed feedback via quadrature outputs (A/B channels, 90-degree phase). Rated at 512 pulses per revolution with a 5-26 VDC line driver output (7272 type). Commonly used in industrial motion control and drive systems, including paper machinery.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Dynapar
Manufacturer Part Number: HR625 0512 0241
Series: HR25 Series Shafted Encoder

512 PPR, 5-26 VDC LINE DRIVER OUT 7272

Common Failures

Frequent issues reported with this product include control problems, a dislodged screen for optics, and controls that appear to be sticking or unresponsive. In some cases, control issues could not be duplicated during evaluation.

Repair Approach

The repair process typically involves cleaning, testing, and adjusting components to restore proper function, such as setting pulses to a 50% duty cycle with correct phase alignment. For physical issues like a dislodged screen, repairs include reattaching components and ensuring proper adhesion.

Testing & Quality

Repairs undergo testing to verify the product functions as expected. This includes confirming pulse accuracy and conducting burn-in tests to evaluate reliability and performance.

Service and repair your broken Dynapar part


We can repair your Dynapar model HR625 0512 0241 in our facility. Let our skilled technicians get your Dynapar back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
