Repair Price: $ 1,176.00
Purchase
CSL Part Number: 21207

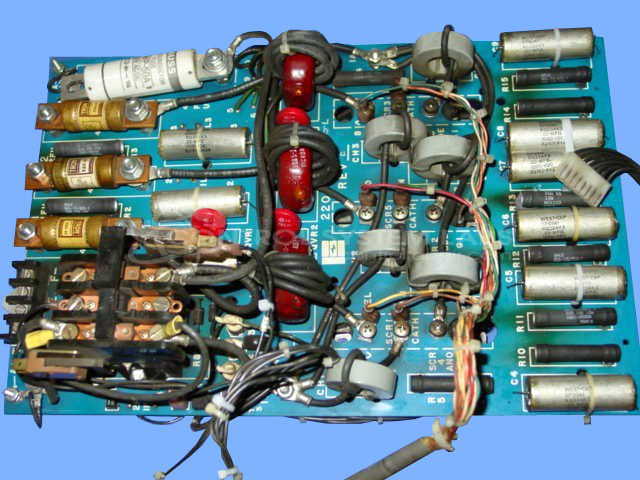

Product Overview: The Spectrum Drive Power Board is a power stage circuit board for DC motor drives. It converts AC line input to controlled DC output using SCR modules, diodes, and snubber networks to regulate armature and field power. Commonly used in paper mill machinery and industrial DC motor control systems.
Category: Motor Controls
Manufacturer: Emerson
Manufacturer Part Number: 2200-4031
Series: Spectrum DC Drive
Also Known As(AKA): WER
Common Failures
Frequently observed issues include shorted diodes, burned circuit board areas, blown fuses, and shorted SCR (Silicon Controlled Rectifier) modules. Symptoms often manifest as erratic operation, inoperable units, or blown line fuses.
Repair Approach
Repairs may involve replacing faulty components such as diodes, SCR modules, and fuses. Burned PCB areas can be reconstructed, and faulty components replaced to restore functionality. In some cases, additional work such as cleaning components or upgrading hardware may be required. Once the unit is received and reviewed, we can provide a quotation before charges are incurred.
Testing & Quality
Post-repair testing is conducted to verify proper functionality. Units are tested for operational readiness to verify stability and performance before being returned to service.
Service and repair your broken Emerson part
We can repair your Emerson model 2200-4031 in our facility. Let our skilled technicians get your Emerson back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
