Repair
Repair Price: $ 396.00
Purchase
CSL Part Number: 1339

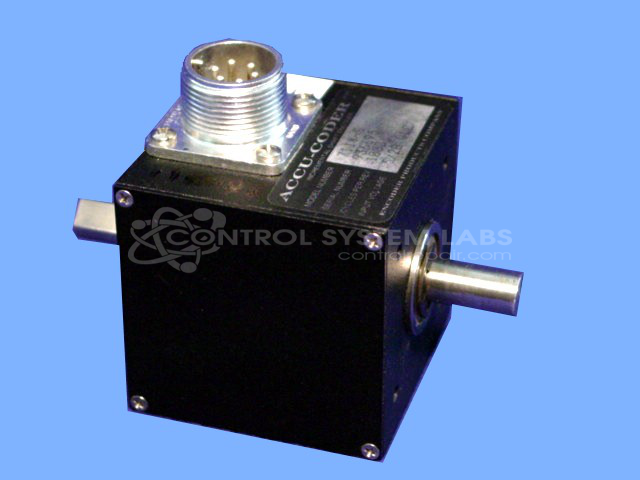

Product Overview: An optical incremental rotary encoder that converts shaft rotation into digital pulse signals for position and speed feedback. Used in paper industry machinery and other motion control systems. Features a code disc generating quadrature A/B output at various resolutions (120 to 600 PPR), adjustable to 50% duty cycle.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Encoder Products
Manufacturer Synonyms: Encoder Products Company
Manufacturer Part Number: 711-S
Common Failures
Customers often report issues such as lack of output, incorrect output signal levels, and inaccurate counting positions. Frequently observed problems include deviations from the expected duty cycle.
Repair Approach
Repairs typically involve cleaning and adjusting internal components to restore proper functionality. Common repair actions include resoldering, cleaning, duty cycle adjustment, and replacement of damaged parts such as emitters and transistors. In some cases, new components are installed to replace missing or worn parts.
Testing & Quality
Each repaired unit undergoes testing to verify functionality. Units are tested and adjusted as needed, and verification procedures are conducted to confirm proper operation.
Service and repair your broken Encoder Products part
We can repair your Encoder Products model 711-S in our facility. Let our skilled technicians get your Encoder Products back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
