CSL Part Number: 86923

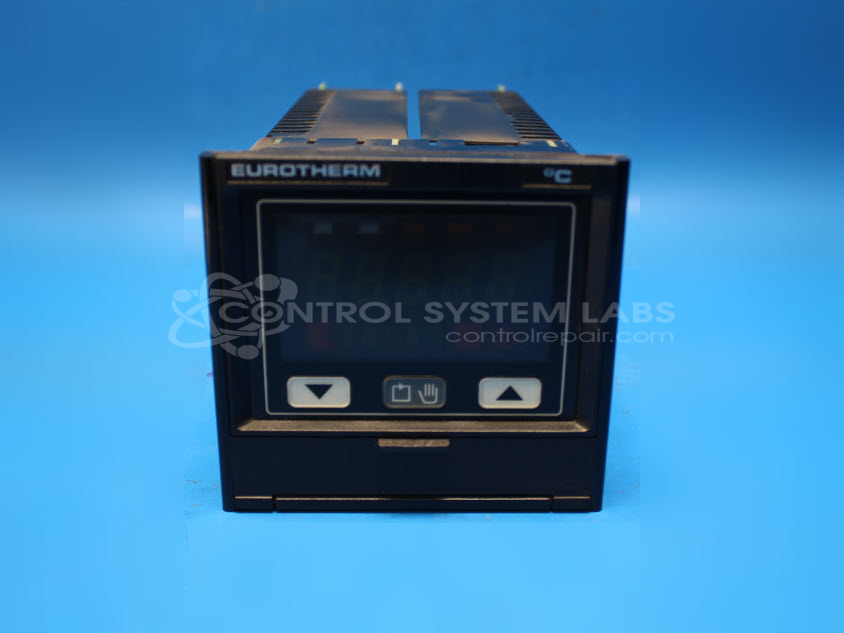

Product Overview: The Eurotherm 818 Series is a configurable programmable temperature/process controller using plug-in modules for flexible field customization. It supports up to 15 programs with 8 ramp and dwell segments per program, available in single or dual output channel configurations. The controller accepts multiple input types with various linearizations including thermocouples and RTDs. Common applications include PVD coating equipment, heat treating furnaces, and other industrial thermal processes requiring precise multi-step temperature profiling. This modular design allows users to adapt controller functionality through interchangeable I/O and communication modules.
Category: Temperature Control
Manufacturer: Eurotherm
Manufacturer Part Number: 818S/TC/R0V10/M0V10/None/X0V10/None
Series: 818 Series Temperature/Process Control
Common Failures
Users may experience an error message indicating a sensor input break, often leading to the display board becoming unreadable across the bottom. This issue is typically caused by a defective display board component.
Repair Approach
The repair process involves resoldering connections as needed and performing normal cleaning. Once the connections are solid, a calibration check is performed to verify the display reads within the correct range of temperatures.
Testing & Quality
Following repairs, the unit undergoes a series of tests to verify function. Initial tests check for any continued display weaknesses. A burn-in test is conducted by cycling the unit through heat and cooling phases at 150 degrees Celsius overnight. Final testing confirms the thermal couple and both outputs are functioning correctly before the repaired unit is returned.
Repair your broken Eurotherm part
We can repair your Eurotherm model 818S/TC/R0V10/M0V10/None/X0V10/None .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
