Repair
Repair Price: $ 3,594.00
Purchase
CSL Part Number: 76248

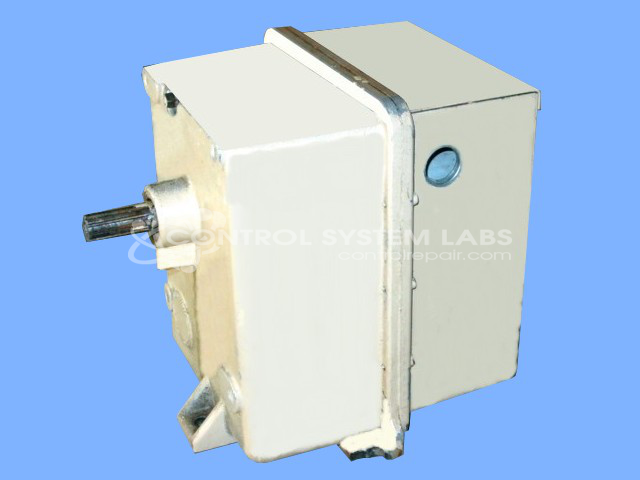

Product Overview: The EA71-370 is a high torque electric actuator from Eurotherm (Schneider Electric) that provides 90-degree rotational movement with 550 pound-force-inches of torque and 20-second travel time. Part of the EA70 Series, it features dual motor configuration, internal limit switches, feedback potentiometer, and auxiliary contacts for position indication. Commonly used in industrial HVAC damper control, process valve automation, and paper manufacturing applications where precise rotational positioning and high torque output are required. The unit includes a manual override worm shaft and operates with sealed internal gearing filled with lubricating oil.
Category: Actuators
Manufacturer: Eurotherm
Alternate Manufacturer Names: Schneider
Manufacturer Part Number: EA71-370-0-0-11
Series: EA70 Series High Torque Actuator
Other Synonyms: Schneider
EA71 Series spec 20 s time 550 lbf-in
Common Failures
This product has exhibited issues primarily related to component degradation, including leaking seals, sticking units, and directional malfunctioning. These problems often manifest as oil leaks, unit immobility, and failure to reverse operation while still functioning in one direction.
Repair Approach
Repairs typically involve replacing defective seals, gaskets, and other major components as needed. In instances where oil leakage is evident, seals may be replaced, new gaskets manufactured, and maintenance such as oil changes performed to restore functionality.
Testing & Quality
Post-repair procedures include testing to verify the reliability of repairs. Burn-in tests are conducted to ensure operational integrity, with units tested in both directions for extended periods. If initial tests reveal issues, further examination of electrical connections and components may be performed to ensure repairs meet standard operational requirements.
Repair your broken Eurotherm part
We can repair your Eurotherm model EA71-370-0-0-11 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
