Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 34710

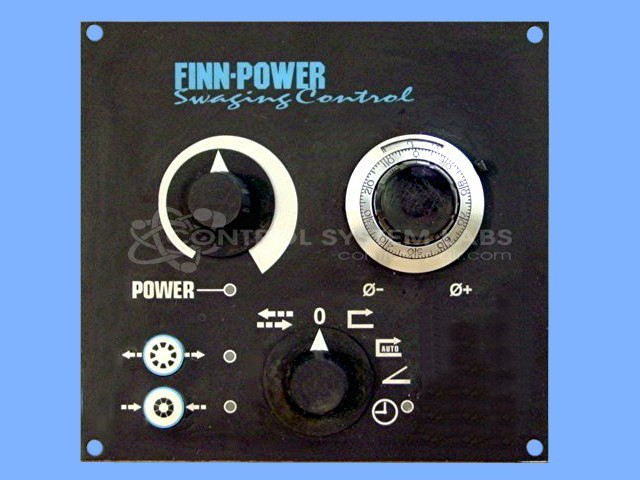

Product Overview: The Front Panel and IS Swaging Control Board is an operator interface and control module for Finn-Power swaging and crimping machines, including CC22IS and CC22VS models. It integrates membrane overlay pushbuttons, multi-turn potentiometers for die position adjustment, indicator lamps, relays for valve control, and logic circuitry using optocouplers and CMOS ICs to manage open/close solenoid functions. The board communicates with hydraulic valve controllers to actuate swaging dies during tube end-forming operations. Key components include BTS410F2 power switches, CD4069/CD4081 logic gates, LM339 comparators, and TLP521 optoisolators for switching and control signal isolation.
Category: Operator & Control Panels
Manufacturer: Finn-Power
Manufacturer Synonyms: FinnPower, Finn Power, Lillbacka
Manufacturer Part Number: 2086/58105HTJ
Series: Swaging/Crimping Controller
Also Known As(AKA): 58105I
Service and repair your broken Finn-Power part
We can repair your Finn-Power model 2086/58105HTJ in our facility. Let our skilled technicians get your Finn-Power back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
