Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 87263

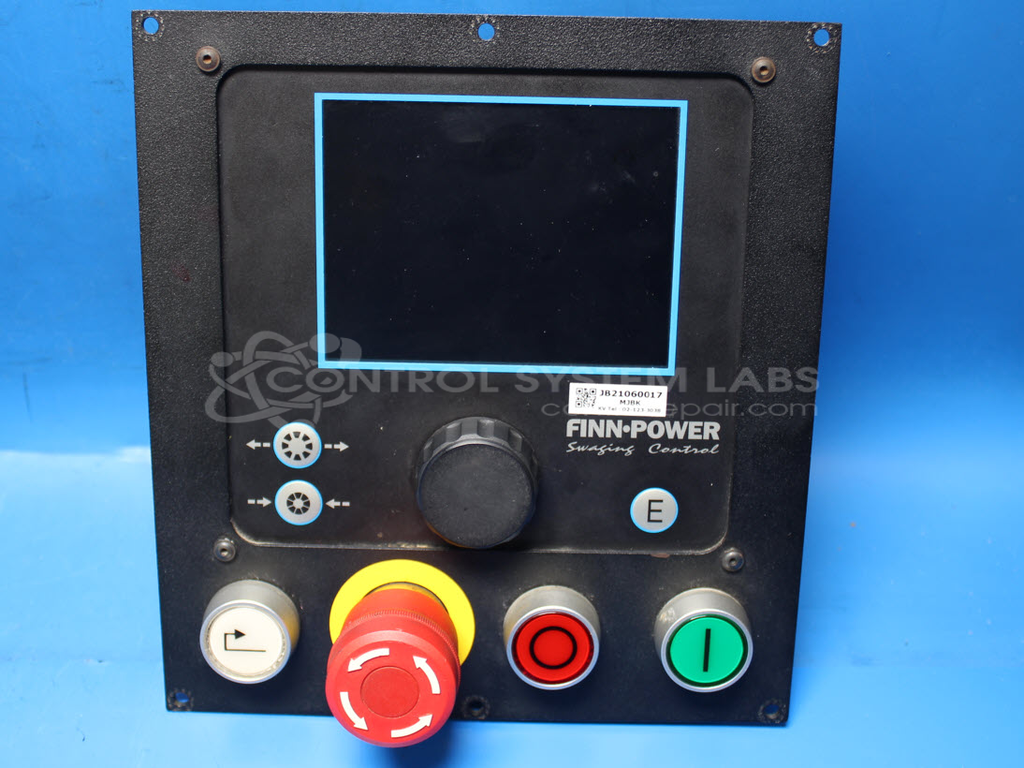

Product Overview: The Finn-Power VS Series Swaging Control Board and Front Panel is an operator interface and control system for Finn-Power crimping and swaging machines, including models FP110 and FP120X. It features a 4.7-inch FSTN-LCD display (320x240 resolution), rotary encoder with control knob for parameter adjustment, membrane overlay keypad, and outputs for controlling hydraulic valves and motor functions in automated crimping operations. The controller uses battery-backed flash memory to retain crimping programs and machine parameters. Common configurations include automatic and manual operating modes with dedicated outputs for dies open, dies closed, free flow, and drain functions.
Category: Operator & Control Panels
Manufacturer: Finn-Power
Manufacturer Synonyms: FinnPower, Finn Power, Lillbacka
Manufacturer Part Number: 4968VS/075004/TJM
Series: Swaging/Crimping Controller
Also Known As(AKA): FP120X VS
System will require recalibration after repair. Any items you have stored in flash memory are USUALLY retained. Please indicate if you would like the passcode reset to factory default (000), or left as we received it.
Common Failures
Units may exhibit symptoms such as crimpers not functioning within tolerances, non-responsive buttons, RAM errors, and control systems failing to activate components such as electric motors and valves. Other symptoms may include defective or worn components like encoder knobs and membrane overlays.
Repair Approach
The repair process typically involves replacing defective components such as contact blocks, battery backups, encoders, LCD screens, resistors, and comparators. We conduct diagnostic testing to identify issues such as battery voltage levels, corrupted memory, and open-circuited resistors. Preventative replacements and cleaning procedures may also be performed to support long-term reliability.
Testing & Quality
Each repaired unit undergoes testing, including as-received inspections, burn-in tests with load application, and functionality assessments to confirm the effectiveness of the repairs. Tests verify that control outputs and functions meet expected performance standards before the unit is returned to the customer.
Service and repair your broken Finn-Power part
We can repair your Finn-Power model 4968VS/075004/TJM in our facility. Let our skilled technicians get your Finn-Power back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
