Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 85302

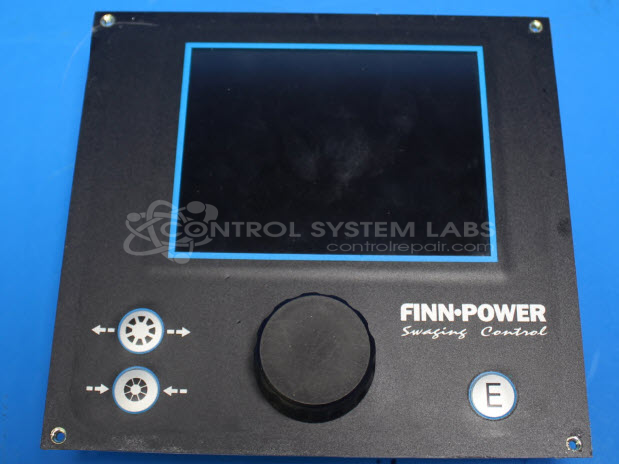

Product Overview: The Finn-Power VS Series Swaging Control Board and Front Panel is an operator interface and controller for hydraulic swaging and crimping machines, including the FP110 and FP140 models. It features a graphical LCD display, rotary encoder for parameter adjustment, and membrane tactile buttons for machine operation control. The board manages crimping cycles, die positioning (open/close), process parameters, and multiple program storage in flash memory. Common issues include memory corruption from backup battery failure, worn rotary encoders, and failed LM239 comparator ICs causing calibration errors. The unit communicates via serial interface and stores machine-specific calibration data that typically survives repair if the battery is replaced before complete failure.
Category: Operator & Control Panels
Manufacturer: Finn-Power
Manufacturer Synonyms: FinnPower, Finn Power, Lillbacka
Manufacturer Part Number: E5301075-1
Series: Swaging/Crimping Controller
Also Known As(AKA): 691569, 1075, 1075D, 1075G, 1075H, 1075D12 E5301075
Used in Finn Power Crimping Machines FP110 and others using the VS controller. Solves your memory corruption issue. System will require recalibration after repair. Any items you have stored in flash memory are USUALLY retained. Other symptoms include: corrupt memory, lost parameters and locked screen. Problems such as bad control knob, button failure, cracked glass, garbage characters or a dead display are addressed at additional cost.
Common Failures
Units commonly exhibit issues including RAM errors, encoder faults, and depleted backup batteries. Screen-related symptoms such as blank displays or incorrect contrast settings have been observed. Physical damage, including damaged encoder knobs and cracked display panels, has also been reported in some units.
Repair Approach
Repairs typically involve component replacement, including batteries, encoders, and display assemblies. When RAM corruption is identified, memory may be reprogrammed using available backup data. Circuit board trace repair and protective coating application are performed as needed based on unit condition and evaluation findings.
Testing & Quality
Following repair work, units are tested to verify functionality. Testing procedures include communication verification, operational load testing, and diagnostic checks. Units that complete testing successfully are returned to service.
Service and repair your broken Finn-Power part
We can repair your Finn-Power model E5301075-1 in our facility. Let our skilled technicians get your Finn-Power back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
