Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 74802

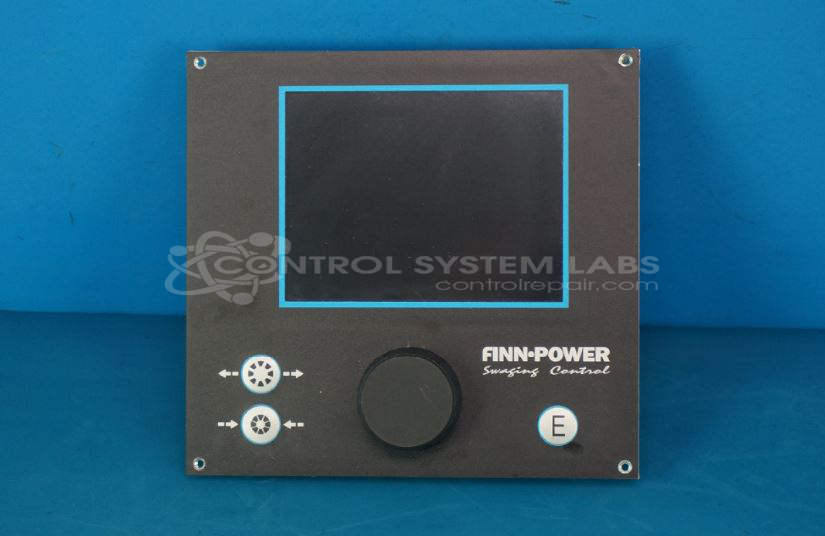

Product Overview: The Finn-Power VS Series Swaging Control Board and Front Panel (E5301075) is an operator interface and control module used in Finn-Power crimping and swaging machines, including the FP110 model. It features a 4.7-inch LCD display, rotary encoder for parameter selection, membrane overlay with tactile buttons, and digital I/O for controlling machine operations such as die movement and crimping cycles. The controller manages operational modes (manual, semi-automatic, automatic), stores crimping programs in battery-backed RAM, and provides calibration and diagnostic functions. Common configurations include variants designated 1075D, 1075G, and 1075H, which may differ in firmware or hardware revision.
Category: Operator & Control Panels
Manufacturer: Finn-Power
Manufacturer Synonyms: FinnPower, Finn Power, Lillbacka
Manufacturer Part Number: E5301075
Series: Swaging/Crimping Controller
Also Known As(AKA): 1075, 1075D, 1075G, 1075H, 1075D12
System will require recalibration after repair. Any items you have stored in flash memory are USUALLY retained. Please indicate if you would like the passcode reset to factory default (000), or left as we received it.
Common Failures
Common issues with this product include defective components such as batteries, capacitors, encoders, and displays. Battery failures often result from broken tabs or depletion, causing memory loss and resetting. Screen and display issues range from dim or dark screens to display panel damage or failure. Other frequent problems involve encoder malfunctions, causing selectivity issues, and corrupted memory that affects program functionality.
Repair Approach
Repairs typically involve replacing defective components like batteries, encoders, and display panels. Diagnostic testing is conducted to identify symptom sources and evaluate the need for part replacement. Preventative maintenance may also be performed—such as replacing capacitors—to address potential future issues. Post-repair, memory may be restored to factory defaults or backed-up settings to address corruption.
Testing & Quality
Repaired units undergo comprehensive testing to verify functionality. This includes burn-in tests, load tests, and verification of operational modes. Testing confirms that input and output functions are working and that any memory issues have been addressed. Units passing all tests are verified as operational before return to the customer.
Service and repair your broken Finn-Power part
We can repair your Finn-Power model E5301075 in our facility. Let our skilled technicians get your Finn-Power back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
