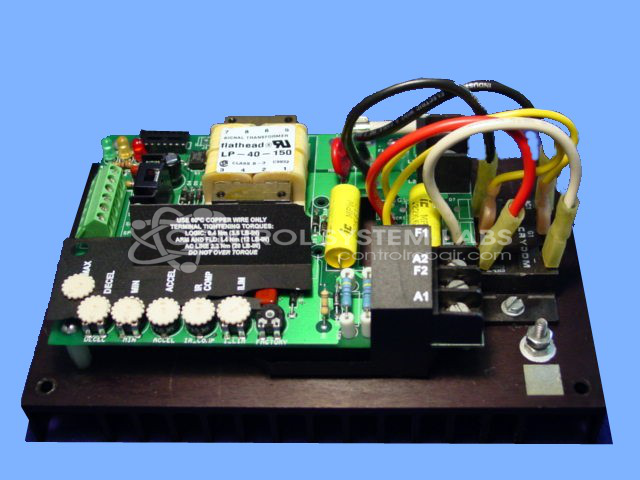

Graham 176B6021 Varispeed A2000 1 Phase 2 HP DC Drive
Repair
Repair Price: $ 408.00
Purchase
CSL Part Number: 47127
Product Overview: A single-phase DC motor speed control drive rated 2 HP with 180 VDC armature output. It regulates speed and torque of DC motors using armature or tachometer feedback, selectable via onboard resistor. Common in paper and industrial machinery for variable-speed motor applications.
Category: DC Motor Controls
Manufacturer: Graham
Manufacturer Synonyms: Graham Transmissions, GRAHAM MOTORS AND CONTROLS
Alternate Manufacturer Names: DANFOSS
Manufacturer Part Number: 176B6021
Series: VariSpeed A2000 DC Drive
Other Synonyms: DANFOSS
Common Failures
This product may experience issues with shorted field diodes and blown fuses, which can result from faulty connections or components. Customers have reported symptoms such as loss of power, no speed control, and blown fuses when the unit is connected. These symptoms can be linked to shorted diodes or faulty solder joints.
Repair Approach
The typical repair process may involve replacing faulty diodes and resoldering connections. Additional steps can include cleaning the control units, adjusting outputs, and running tests to evaluate functionality. When necessary, fuses may also be replaced and components such as surface mount resistors and timers may be repaired or replaced.
Testing & Quality
After completing repairs, units are tested, which may include running motors for several hours to evaluate performance. Adjustments are made to ensure proper voltage output, and quality control checks are performed to confirm the unit functions as expected before it is returned.
Service and repair your broken Graham part
We can repair your Graham model 176B6021 in our facility. Let our skilled technicians get your Graham back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
