Repair
Repair Price: $ 316.00
Purchase
CSL Part Number: 59811

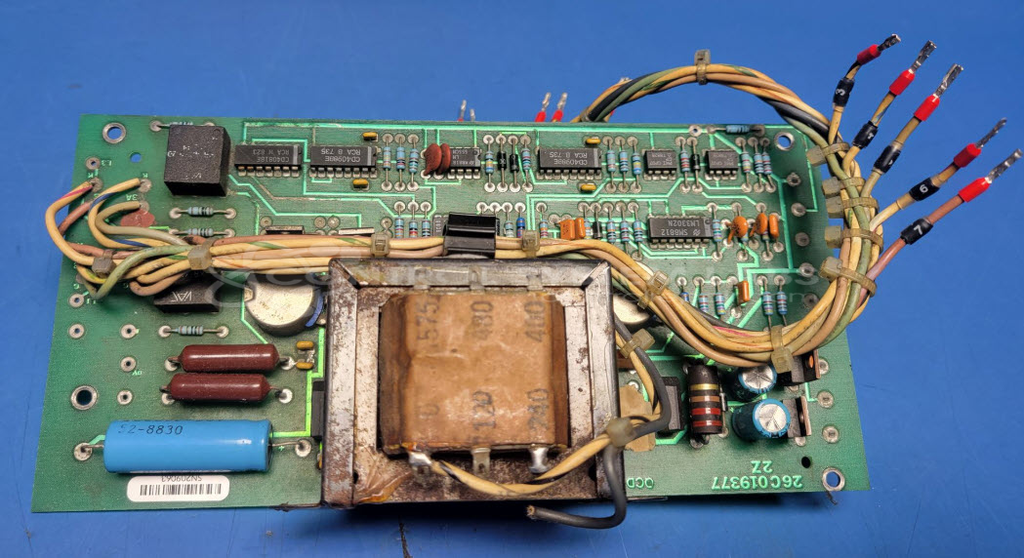

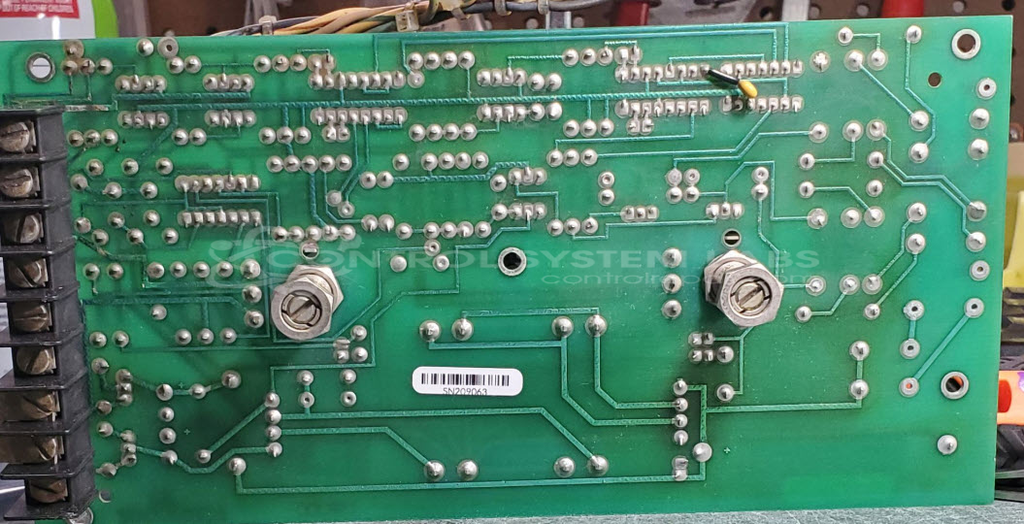

Product Overview: The 2Z Trigger Board is a gate firing control board for Halmar Robicon 2Z Series three-phase SCR power controllers. It generates trigger pulses to control thyristor switching in industrial power control applications. The board operates from 0-5 volt control signals and interfaces with 240-volt line power systems. It includes onboard power supply circuitry with ±12V regulators and a power transformer for internal circuit operation. These boards are used in heating, motor control, and process applications requiring precise AC power regulation.
Category: Power Controls
Manufacturer: Halmar Robicon
Manufacturer Synonyms: Robicon
Manufacturer Part Number: 26C024214
Series: 2Z Series 3 Phase Power Control
Please send in whole unit for proper testing.
Common Failures
Common issues observed in units received for evaluation include electrolytic capacitors with high equivalent series resistance (ESR) affecting the 12V regulators, and transformers showing signs of corrosion or degradation.
Repair Approach
Repairs may involve replacing defective electrolytic capacitors to restore proper voltage levels. Preventative replacement of additional capacitors may be performed when indicated. Transformers showing corrosion may be addressed through rewinding when feasible. The specific repair approach is determined after evaluation of each unit.
Testing & Quality
Testing is conducted to the extent possible based on the unit configuration received. Voltage levels are verified after component replacement. When complete systems are not available for testing, customers should perform final operational testing on-site. All items undergo internal quality review before return.
Service and repair your broken Halmar Robicon part
We can repair your Halmar Robicon model 26C024214 in our facility. Let our skilled technicians get your Halmar Robicon back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
