Repair
Repair Price: $ 1,572.00
Purchase
CSL Part Number: 74349

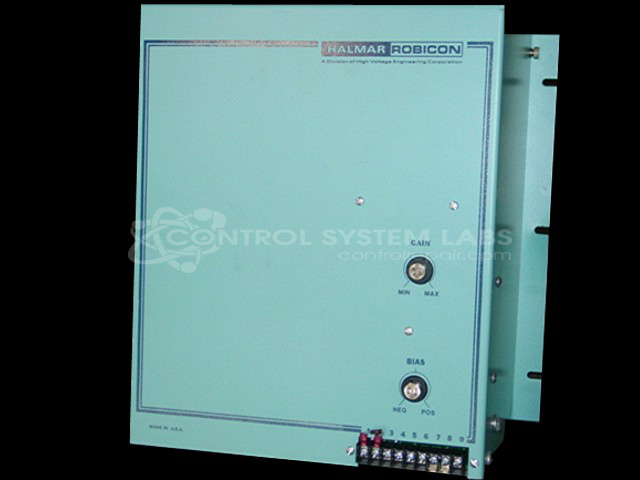

Product Overview: The Halmar Robicon 2Z-48225-5 is a three-phase SCR power controller rated for 480V and 225 amps. It provides proportional power control to resistive loads such as industrial heaters and heating elements using a 4-20mA analog control signal. The controller utilizes thyristor-based switching to regulate output power from 0% to 100% based on the input signal. Common applications include process heating, oven control, and temperature regulation in manufacturing environments. The 2Z Series features modular construction with replaceable power modules, control circuitry, and protective fuses for maintenance accessibility.
Category: Power Controls
Manufacturer: Halmar Robicon
Manufacturer Synonyms: Robicon
Manufacturer Part Number: 2Z-48225-5
Series: 2Z Series 3 Phase Power Control
Missing or bad fuses additional.
Common Failures
This product has been observed to experience issues with signal responsiveness, which can lead to overheating if the unit does not shut down as expected. Repairs have addressed components such as voltage regulators, transformers, power modules, and gain potentiometers.
Repair Approach
Our repair process may involve the replacement of electrolytic capacitors, power resistors, voltage regulators, transformers, and other components as needed based on evaluation findings. Component placement and functionality are verified during the repair process.
Testing & Quality
Post-repair testing includes signal response verification and monitoring during a burn-in test under load conditions. Testing may also include oscilloscope evaluation of AC waveforms under various operating conditions to confirm proper operation.
Service and repair your broken Halmar Robicon part
We can repair your Halmar Robicon model 2Z-48225-5 in our facility. Let our skilled technicians get your Halmar Robicon back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
