CSL Part Number: 109339

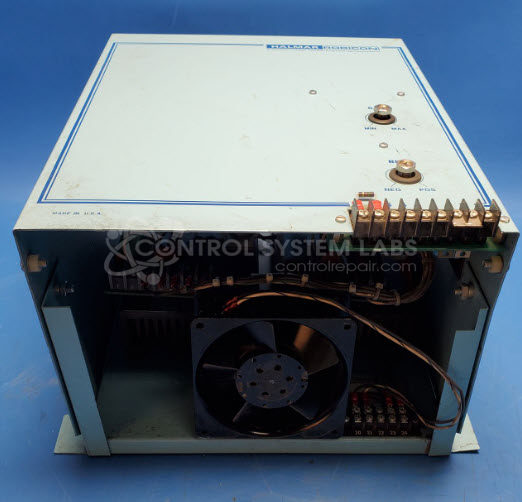

Product Overview: The Halmar Robicon 2Z Series is a three-phase SCR power controller designed for precise control of resistive and inductive heating loads. This unit operates on 480VAC three-phase power and is rated for 120 amperes output. It accepts 4-20mA control signals to modulate output power from 0 to 100% duty cycle. Commonly used in industrial heating applications including ovens, furnaces, and process heating equipment where accurate temperature control is required.
Category: Power Controls
Manufacturer: Halmar Robicon
Manufacturer Synonyms: Robicon
Manufacturer Part Number: 2Z48120-FK
Series: 2Z Series 3 Phase Power Control
Common Failures
This unit was received with missing components, including a fuse and standoff, as well as damaged SCR packs. These components are necessary for proper operation and were replaced during the repair process.
Repair Approach
The repair process included replacing the missing fuse, standoff, and associated hardware. Existing components such as SCR blocks and electrolytic capacitors were tested and verified to be functioning properly. Connections to terminal strips and power resistors were re-soldered, and loose hardware was secured to restore the unit's stability.
Testing & Quality
Following repair, the unit was tested under load conditions. Testing verified proper operation with 4-20mA input and full duty cycle output, confirming that the unit met operational requirements.
Service and repair your broken Halmar Robicon part
We can repair your Halmar Robicon model 2Z48120-FK in our facility. Let our skilled technicians get your Halmar Robicon back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
