Repair
Repair Price: $ 990.00
Purchase
CSL Part Number: 111205

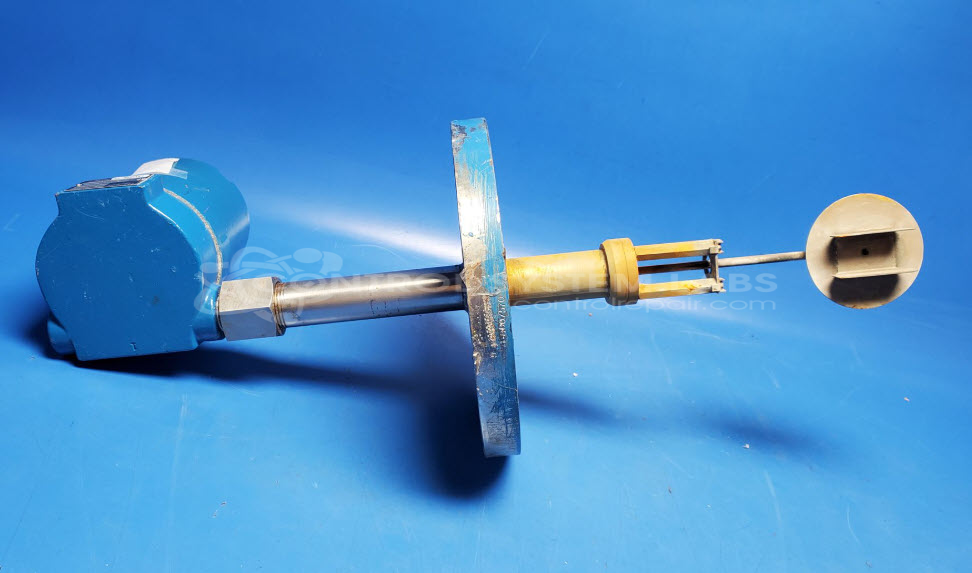

Product Overview: The Hersey Mark V Target Flowmeter is an industrial flow measurement device that uses a spring-loaded target and strain gauge bridge to detect flow rate in pipelines. It converts mechanical deflection caused by fluid flow into a 4-20 mA electrical output signal proportional to flow. The V-10-P1S1K configuration features a 350-ohm strain gauge bridge circuit and operates on low voltage DC power. Common in water, wastewater, chemical processing, and industrial fluid systems, it provides reliable flow monitoring in harsh environments where traditional meters may fail.
Category: Flow Meters
Manufacturer: Hersey Measurement Company
Alternate Manufacturer Names: Aaliant, Venture Measurement, Niagara Meters, Anderson Negele
Manufacturer Part Number: V-10-P1S1K
Series: Mark V Target Meter
Also Known As(AKA): 60122G, Mark V
Other Synonyms: Aaliant, Venture Measurement, Niagara Meters, Anderson Negele
Include problem description, pipe size, process conditions and manuals wiring diagrams when sending in for repair. Calibration is not included in standard repair price. If used with hazardous chemicals include decontamination statement Do not remove circuit boards from the housing, send in intact. If strain gage sensor that is sealed inside the metal tube is damaged that may not be repairable.
Common Failures
Units may exhibit corrosion-related issues or impedance inconsistencies in the 350-ohm bridge circuit. Evaluation and testing are used to determine the actual condition and serviceability of each unit.
Repair Approach
When corrosion is identified, the unit is cleaned using appropriate solutions. Component replacement may include capacitors or other parts as determined during evaluation. The 4-20 mA output and strain gauge circuit are tested to verify functionality.
Testing & Quality
Each repaired unit is tested to verify proper operation of the 4-20 mA output and related circuits. Units are subject to CSL quality checks and testing protocols before return.
Limited Repair
The Hersey Measurement Company part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Hersey Measurement Company part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
