Repair
Repair Price: $ 728.00
Purchase
CSL Part Number: 39745

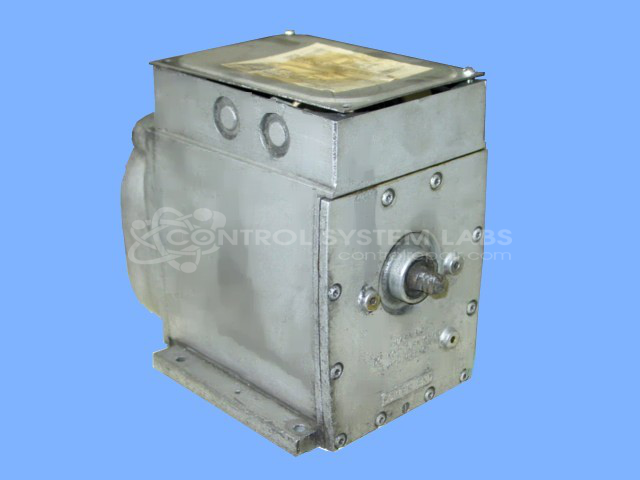

Product Overview: The Honeywell M7285A1003 is a Modutrol IV motor actuator from the M72 series used for precise positioning control in HVAC and combustion systems. It operates on 120VAC input with 24VAC output to drive dampers, valves, and burner controls in boilers, furnaces, and air handling equipment. This direct-coupled actuator provides proportional control with internal gearing that translates motor rotation into shaft movement. The unit features a modulating motor design that responds to electronic control signals for accurate positioning throughout its stroke range.
Category: Actuators
Manufacturer: Honeywell
Manufacturer Part Number: M7285A1003
Series: M72 Modutrol IV Actuators
Limited repairs to this series Actuator
Common Failures
Common issues reported for this product include the motor running without the shaft turning, often due to internal gear failure. In some cases, defective components are identified during evaluation.
Repair Challenges
Repairs for these issues may be limited by the availability of replacement parts for the internal gear mechanism. In some cases, required gear parts are not available, which may result in the unit being Beyond Economic Repair.
Service and repair your broken Honeywell part
We can repair your Honeywell model M7285A1003 in our facility. Let our skilled technicians get your Honeywell back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
