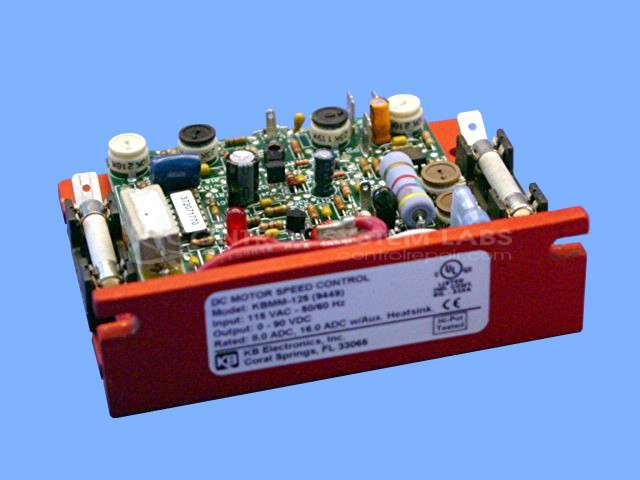

KB Electronics KBMM-125 120 VAC Input 3/4 to 1 1/2 HP DC Motor

Repair

Repair Price: $ 348.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/24268/image_1920?unique=205228d
  • Condition

Purchase Price: $ 0.00 $ 0.00 348.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 4621
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBMM-125
Series: KBMM DC Motor Speed Control

Common Failures

Common issues reported by customers include shorted diodes, burnt traces, defective capacitors, missing or blown fuses, and water-induced corrosion. These conditions can affect circuit operation and may require inspection and component replacement.

Repair Approach

Repairs typically involve replacing defective components such as diodes, integrated circuits, capacitors, and fuses. Corroded areas are cleaned, and burnt traces are rerun to restore functionality. In some cases, adjustments to board settings, such as jumper configurations, are made to ensure compatibility with the correct voltage requirements.

Testing & Quality

After repairs, units undergo testing, including burn-in periods that may range from 30 minutes to several hours, often using motors of varying horsepower to verify operational integrity. Post-repair inspections are performed to confirm that components are functioning correctly and that proper voltages are maintained.

Customer Guidance

Customers are advised to ensure that the appropriate fuses and resistors are in place, as these can impact the longevity and performance of the unit. We also recommend verifying that the unit is set to the correct voltage, typically 115vAC, for proper operation.

Service and repair your broken KB Electronics part


We can repair your KB Electronics model KBMM-125 in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
