Repair
Repair Price: $ 348.00
Purchase
CSL Part Number: 30536
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC

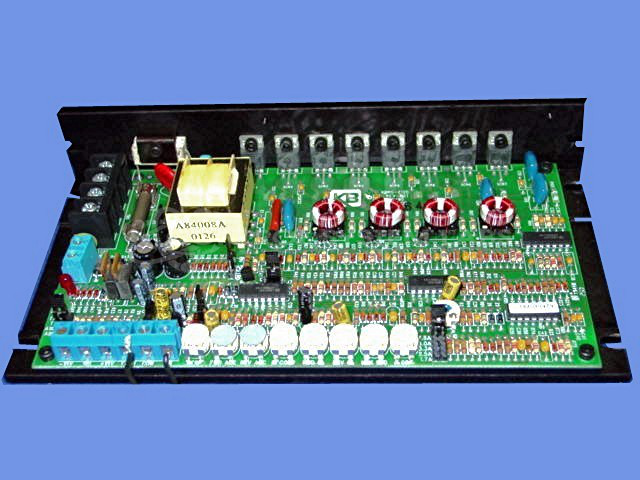

Manufacturer Part Number: KBRG-212D
Series: KBRG Regenerative DC Drive
DC Motor Speed Control, Full Wave, 4 Quadrant
Common Failures
Common issues observed with this product include blown fuses, faulty SCRs, malfunctioning voltage regulators, and defective capacitors. These failures can result in symptoms such as incorrect voltage output and unexpected motor performance issues. In some cases, incorrect fuse values have been identified and replaced during repair.
Repair Approach
The typical repair approach involves replacing faulty components such as SCRs, voltage regulators, and capacitors as needed. Circuit board trace repair and rerouting may also be performed when damage is identified. Components are resoldered, cleaned, and systematically tested after repairs. Voltage output settings are adjusted as required based on evaluation findings.
Testing & Quality
Post-repair testing includes running the unit under operational loads for several hours to verify performance. This may involve using a motor to simulate operational conditions. Adjustments are made to confirm voltage outputs are within specified ranges. Testing helps verify that repairs have addressed the identified issues.
Service and repair your broken KB Electronics part
We can repair your KB Electronics model KBRG-212D in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
