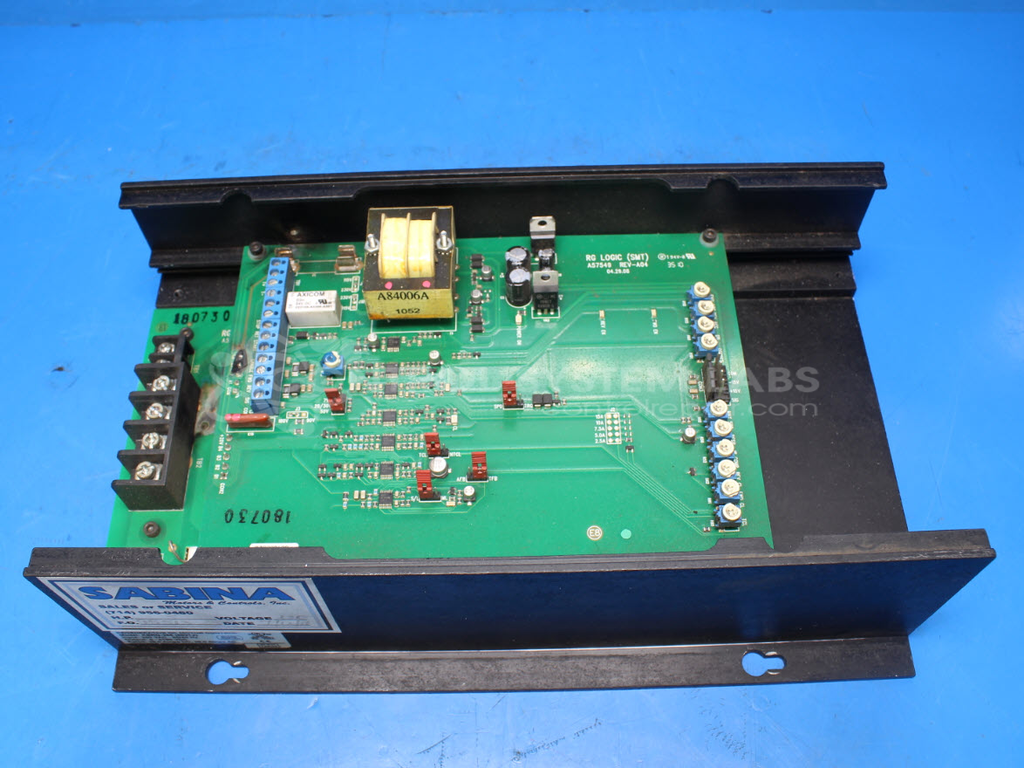

KB Electronics KBRG-255 (8821J) DC Motor Drive 240VAC 26A 5HP 180VDC

Repair

Repair Price: $ 348.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/70250/image_1920?unique=ac732ca
  • Condition

Purchase Price: $ 0.00 $ 0.00 348.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 86635
Product Overview: A regenerative, four-quadrant DC motor speed control using full-wave rectification to drive permanent magnet and shunt-wound DC motors. Rated for 240VAC input, 26A, and 180VDC output up to 5HP, it provides bidirectional control with forward and reverse operation for industrial machinery requiring dynamic braking and reversing.
Category: DC Motor Controls
Manufacturer: KB Electronics
Manufacturer Synonyms: NIDEC
Manufacturer Part Number: KBRG-255 (8821J)
Series: KBRG Regenerative DC Drive

DC Motor Speed Control, Full Wave, 4 Quadrant

Common Failures

Common issues reported include damaged components on control and power circuit boards. Symptoms may include the unit not starting, or the unit receiving power but producing no output while other functions appear normal.

Repair Approach

Our repair process typically includes cleaning and inspecting circuit boards to identify damaged traces, connectors, or components. Replacement of components such as terminal blocks, fuses, and sockets may be required. In some cases, reflowing solder joints addresses the issue. The specific repair approach is determined during evaluation.

Testing & Quality

After repair, units undergo functional testing. This may include extended runtime testing with a motor and verification of input and output functions and indicators to confirm proper operation.

Service and repair your broken KB Electronics part


We can repair your KB Electronics model KBRG-255 (8821J) in our facility. Let our skilled technicians get your KB Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
