CSL Part Number: 106846

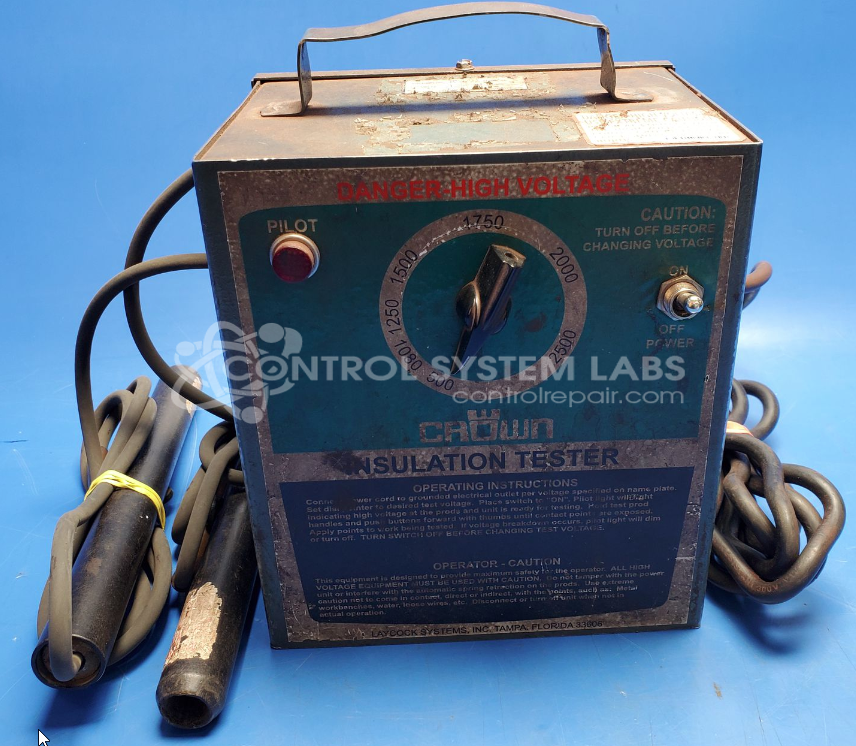

Product Overview: The Laycock Systems Model 2110 is a high-voltage insulation tester, also known as a hipot tester, used to verify the electrical insulation integrity of components, assemblies, and equipment. It applies controlled high voltages to detect insulation breakdowns, leakage currents, or potential safety hazards in electrical systems. The unit features a voltage selector switch and handheld test probes, with internal circuitry that is potted for electrical isolation and environmental protection. Commonly used in manufacturing quality control, maintenance testing, and electrical safety compliance applications.
Category: Test Equipment
Manufacturer: Laycock Systems, Inc
Manufacturer Part Number: 2110
Please send the test probes with this and a detailed symptom or complaint.
Common Failures
Issues with this product have primarily involved damage to internal components, including wear on test probes and damage to the voltage selector. High voltage arcing has also been noted in some cases.
Repair Approach
Due to the nature of damage observed in units of this type, particularly when critical components such as the main voltage selector switch are compromised, repairs may be deemed Beyond Economic Repair. The use of potting in the circuitry can make repairs difficult. Once the unit is received and reviewed, we can provide a quotation before charges are incurred. For issues requiring in-depth evaluation, a bench charge may apply to determine repair feasibility.
Testing & Quality
Units have been observed to fail initial safety and functionality tests, and further testing may not be possible due to safety concerns and the difficulty of adequately assessing the condition of potted components. We would be glad to review the item and provide a quotation based on our findings.
Limited Repair
The Laycock Systems, Inc part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Laycock Systems, Inc part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
