Repair
Repair Price: $ 1,954.00
Purchase
CSL Part Number: 88257

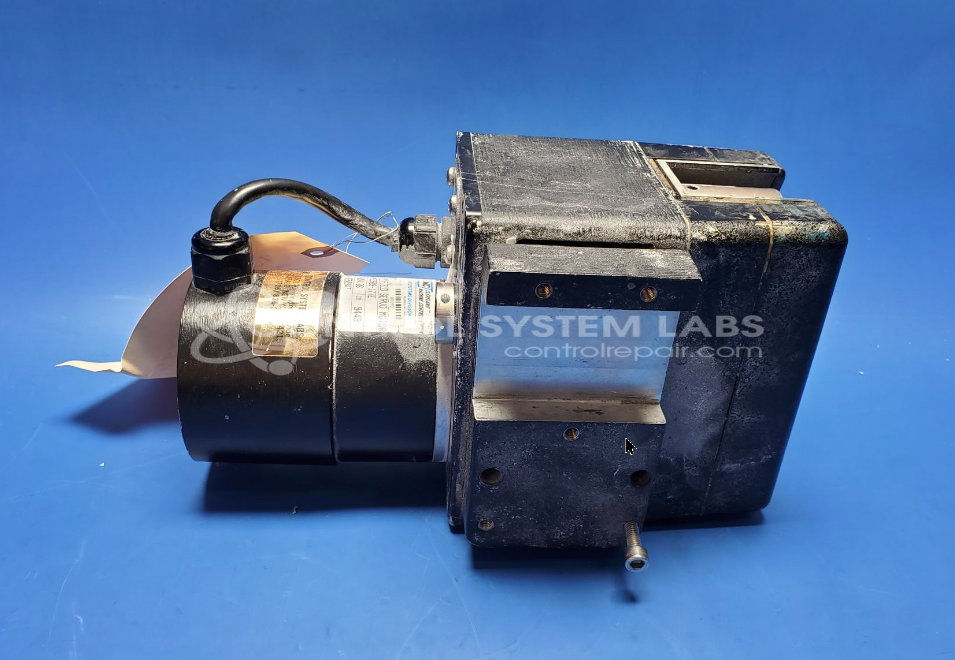

Product Overview: The Markem 9840 with ME3509-177E servo motor is an integrated coder-dater control system used for printing date codes, lot numbers, and product information on packaging materials. This servo-driven print head assembly combines the controller logic with a dedicated servo motor and encoder for precise rotational positioning during the marking cycle. It features a heated drum mechanism with thermistor temperature monitoring and replaceable heater cartridges. The system operates in configurable print modes (1-up or 2-up) and is commonly found in high-speed packaging lines requiring consistent, repeatable coding. The unit includes timing belt drives, sealed bearings, and encoder feedback for synchronization with production equipment.
Category: Servo Motors
Manufacturer: Markem Corporation
Manufacturer Synonyms: Markem-Imaje
Manufacturer Part Number: 9840 with ME3509-177E
Series: Marker Servo Motor
Common Failures
Several common issues have been observed during evaluation of these units. These include units cycling once and then stopping, partial rotation followed by mechanical binding, thermistor faults, and electrical shorts originating in the print head area. Additional findings consist of reset behavior affecting print settings and elevated motor current draw. Various causes were identified, such as missing hardware, external debris contamination, defective components including thermistors and heater cartridges, and motor-related concerns.
Repair Approach
The repair process typically involves cleaning internal components, replacing defective parts such as bearings and thermistors, and securing loose hardware. Adjustments such as setting proper belt tension and reconfiguring unit operation modes are also performed as needed to restore proper function. In cases of elevated motor current draw, our technicians evaluate the unit to determine the appropriate repair or replacement action.
Testing & Quality Assurance
Following repair, units are tested to verify functionality. This includes running the units through multiple cycles, performing burn-in tests under load, and confirming successful completion of extended operation with no errors. Each unit is reviewed by a technician to confirm that it meets our quality standards before being returned to the customer.
Service and repair your broken Markem Corporation part
We can repair your Markem Corporation model 9840 with ME3509-177E in our facility. Let our skilled technicians get your Markem Corporation back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
