CSL Part Number: 109029

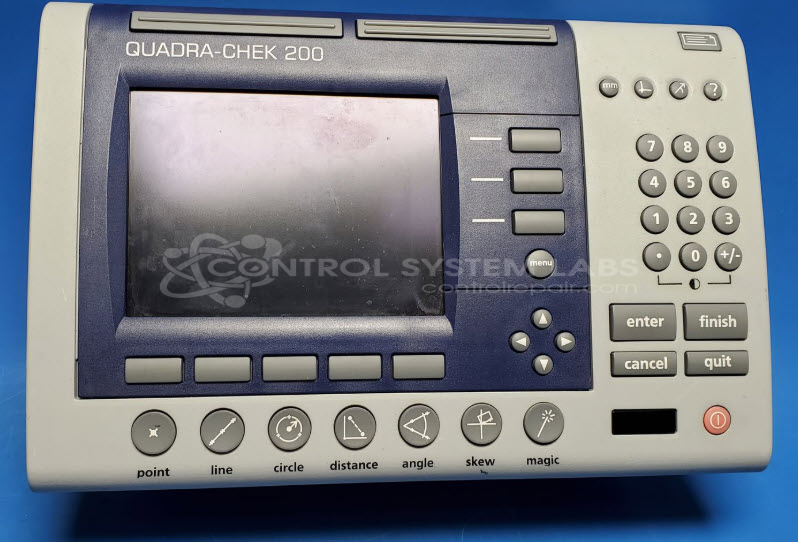

Product Overview: The Quadra-Chek 200 Controller (model QC230-VI-NLEC) is a digital readout (DRO) manufactured by Metronics for precision dimensional measurement applications. It interfaces with linear encoder scales to display X, Y, and Z axis positions in metrology and inspection equipment such as optical comparators, coordinate measuring machines, and toolroom measuring systems. The unit features a backlit display, fiber optic light sensor capability, and accepts single-ended encoder inputs via military-spec connectors. It provides real-time position readout with the accuracy and resolution needed for quality control and measurement tasks in manufacturing environments.
Category: Meters / Gauges / Readouts
Manufacturer: Metronics
Manufacturer Part Number: QC230-VI-NLEC
Series: Quadra-Check 200 Readout
Please also send in a scale or encoder from one of the axis to test with the unit.
Common Failures
This product commonly experiences issues with connectors and backlight performance. Connector damage may prevent proper connection, and a blocked or misaligned reflector can result in reduced or absent backlight illumination.
Repair Approach
Repairs typically involve inspecting and replacing damaged connectors as needed and verifying proper fit and function. When backlight issues are identified, the reflector is inspected and adjusted or replaced to restore proper illumination. Comprehensive checks are conducted on encoder inputs, keys, and other functional components to verify operation.
Testing & Quality
After repairs are completed, testing is performed to verify functionality. This includes checking power supply stability and output voltages, testing keys and display operations, and confirming encoder performance using a simulator. The fiber optic light sensor is evaluated using established test procedures. Units undergo functional testing to verify operation before being returned to service.
Service and repair your broken Metronics part
We can repair your Metronics model QC230-VI-NLEC in our facility. Let our skilled technicians get your Metronics back in operation quickly.
