CSL Part Number: 113319

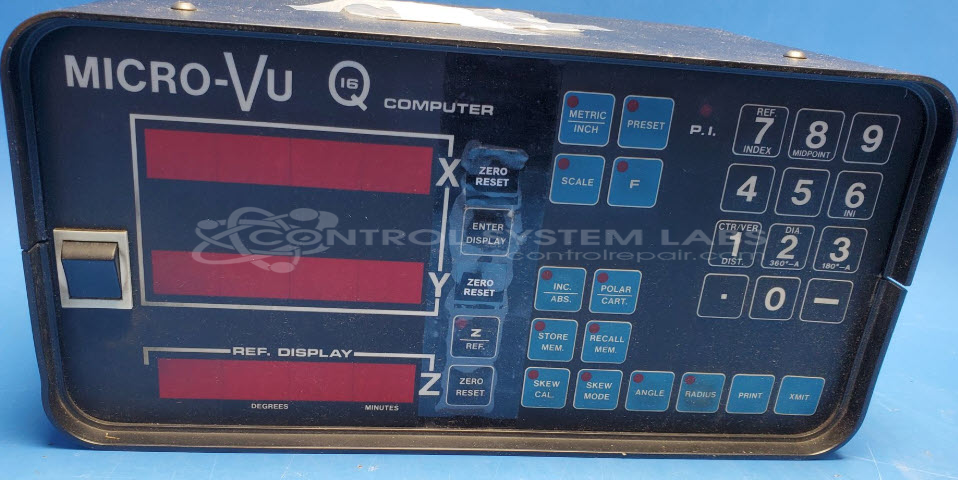

Product Overview: The Micro-VU Q16 Control Front Panel Overlay is a replacement membrane keypad interface for the Micro-VU Q16 Readout, a 3-axis digital readout system used on precision measurement equipment and metrology machines. This component provides the operator control interface with tactile button inputs for measurement functions. It is supplied as an overlay only without the metal backing plate and must be adhered to the existing panel structure during installation.
Category: Machine Control
Manufacturer: Micro-Vu
Manufacturer Part Number: 26530-2RED
Series: Micro-VU Q16 Readout
Common Failures
Physical damage to the buttons on the control front panel overlay is a common issue that may require overlay replacement.
Repair Approach
The repair process involves removing the damaged overlay, cleaning the surface, and installing a new overlay. Each button is tested to verify proper function and ensure the matrix configuration matches the original design.
Testing & Quality
After installation, all buttons are tested to confirm proper operation and to verify that the overlay functions as intended. The unit undergoes diagnostic testing to evaluate component function.
Service and repair your broken Micro-Vu part
We can repair your Micro-Vu model 26530-2RED in our facility. Let our skilled technicians get your Micro-Vu back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
