Repair Price: $ 560.00
Purchase
CSL Part Number: 34425

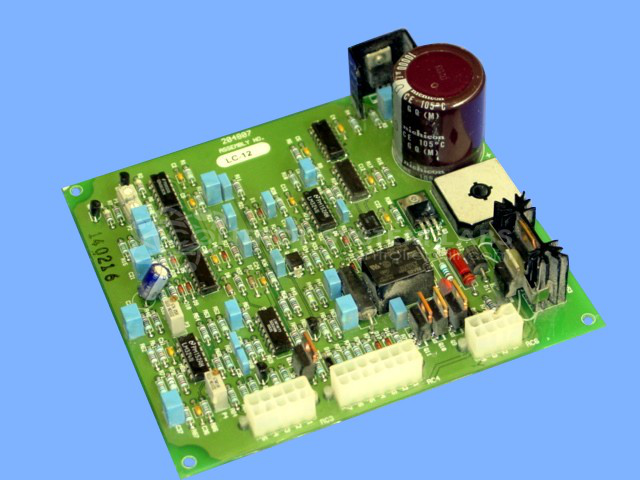

Product Overview: The Millermatic 210 Wire Feeder Control Card (Miller PN 204807) is a PWM-based control board that regulates wire feed speed and welding output in Millermatic 210 MIG welding systems. It interfaces with speed adjustment potentiometers and drives wire feed motors through power transistor outputs. The board uses integrated circuits including a pulse-width modulator (SG3524N), analog multiplexer (DG212CJ+), and operational amplifiers (LM324N) to process user inputs and deliver proportional motor control signals. It is used in both Millermatic 210 arc welding power sources and compatible wire feeder units for light-to-medium industrial and fabrication applications.
Category: Welders
Manufacturer: Miller Electric
Manufacturer Part Number: 204807
Series: Millermatic Welders
Can cause problems like no gas flow, no wire feed or spool gun inoperative.
Common Failures
This product has experienced issues related to defective components that impact functionality. A common problem is failure in the speed adjustment circuit, primarily due to open resistors. In several cases, the resistor and related components, such as the PWM controller and transistors, were identified as defective, resulting in issues like the inability to control speed or the outputs failing to turn on.
Repair Approach
Repairs typically involve replacing the failed resistors within the speed adjustment circuit. In some instances, other components like the PWM controller or certain transistors are also replaced. Conformal coat removal and reapplication are part of the repair process.
Testing & Quality
Post-repair, thorough testing is conducted, including a two-hour burn-in test with loads such as light bulbs or motors to verify performance. Testing is performed to confirm that performance issues, such as speed control failure, have been addressed before the unit is returned.
Service and repair your broken Miller Electric part
We can repair your Miller Electric model 204807 in our facility. Let our skilled technicians get your Miller Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
