Repair
Repair Price: $ 920.00
Purchase
CSL Part Number: 81761

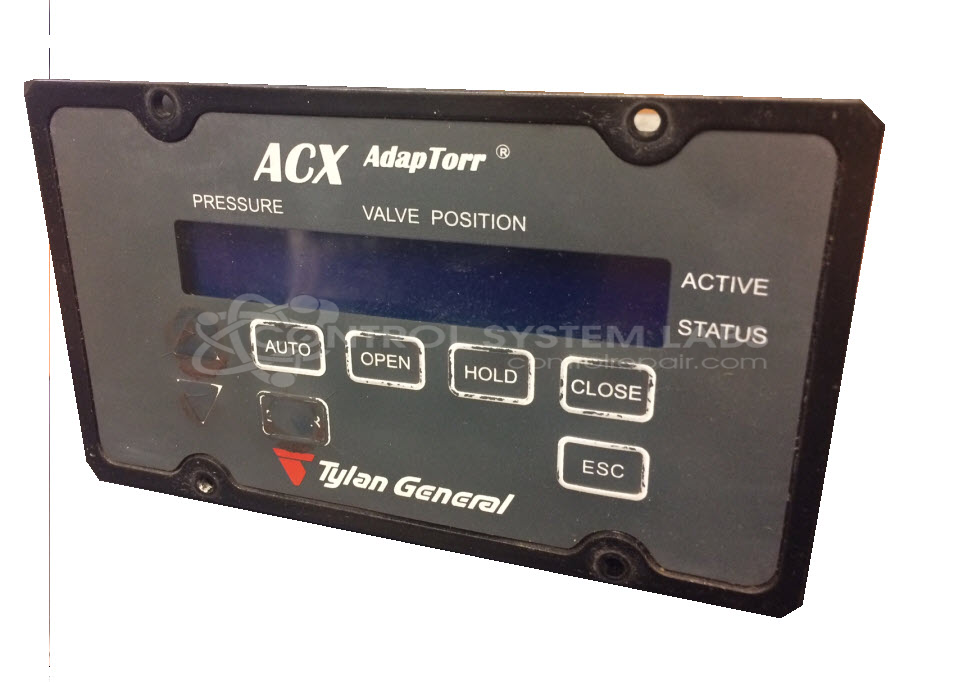

Product Overview: The Tylan General Millipore ACX AdapTorr Pressure Controller (ACX2201) is used to regulate pressure levels, primarily in semiconductor manufacturing processes. It is part of the ACX2201 Pressure series and features a membrane keypad for control. New replacement keypads are available to maintain optimal functionality, ensuring precise pressure control essential for delicate semiconductor applications.
Category: Pressure Controls
Manufacturer: Millipore
Alternate Manufacturer Names: Tylan General
Manufacturer Part Number: ACX2201
Series: ACX2201 Pressure
Other Synonyms: Tylan General
Common Failures
This product commonly experienced issues with worn or defective overlays, which typically required replacement. Overlays were subject to wear over time, which could affect keypad functionality.
Repair Approach
Repairs involved removing the existing overlay, cleaning the underlying surface, and installing a replacement overlay. Each button was tested to confirm proper functionality after replacement. Resistance values were checked to verify operational integrity of the buttons including "UP", "DOWN", "AUTO", "ENTER", "OPEN", "HOLD", "CLOSE", and "ESC".
Testing & Quality
Replacements underwent Level 1 Testing to confirm button functionality. The integrity of the keypad was assessed through connectivity tests and resistance measurements to verify that each button operated within expected parameters. Testing was verified by CSL technicians for quality assurance.
Service and repair your broken Millipore part
We can repair your Millipore model ACX2201 in our facility. Let our skilled technicians get your Millipore back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
