Repair
Repair Price: $ 2,596.00
Purchase
CSL Part Number: 110140

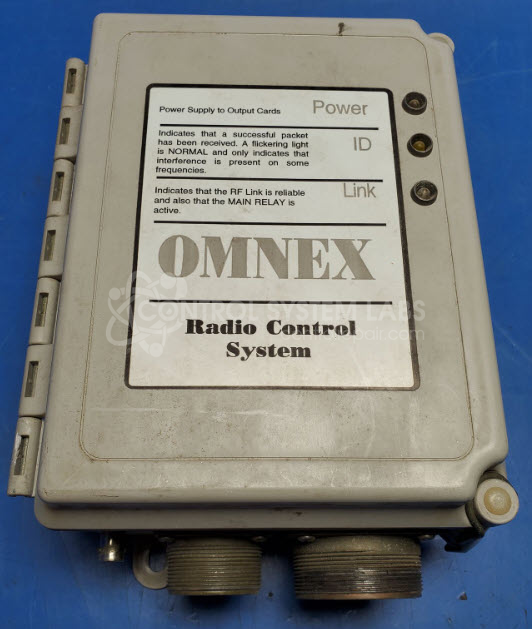

Product Overview: The Omnex ASSY-1992-01 is a radio control receiver designed for mobile equipment such as digger derricks, boom trucks, and utility vehicles. It receives wireless commands from a paired transmitter and converts them into both analog PWM outputs (0-12V variable) and digital outputs (12V on/off) to control hydraulic valves, motors, and other actuators. The unit features multiple output channels for functions like boom movement, winch operation, engine control, and emergency stop, plus analog feedback inputs for position sensing. It operates on 12V DC power and includes status LEDs for power, link, and communication diagnostics.
Category: Receiver
Manufacturer: Omnex
Manufacturer Part Number: ASSY-1992-01
Please include mating transmitter to be checked with the receiver
Common Failures
Several issues have been identified, including physical damage to mounting tabs, incorrect output voltage, and missing feedback signals leading to error indications during operation. Physical damage issues have involved replacement of mounting tabs, while voltage output discrepancies have required diagnostic testing of outputs and inputs.
Repair Approach
Repair processes have included replacing damaged mounting tabs to restore mechanical integrity. Diagnostic testing has been conducted to assess power indicators and output voltages. Solutions have involved battery recharging, verification of output voltage consistency across different functions, and construction of custom test fixtures to ensure proper feedback. Additionally, feedback inputs have been equipped with potentiometers to address missing feedback signals.
Testing & Quality
Following repairs, units undergo testing including burn-in procedures and functional verification to ensure responsiveness to transmitter commands and accuracy of outputs. When error messages have been present, adjustments have been made to address the issue. Final testing confirms that analog and digital outputs function as programmed, with any conditional issues documented and addressed as needed.
Repair your broken Omnex part
We can repair your Omnex model ASSY-1992-01 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
