Repair
Repair Price: $ 1,864.00
Purchase
CSL Part Number: 110139

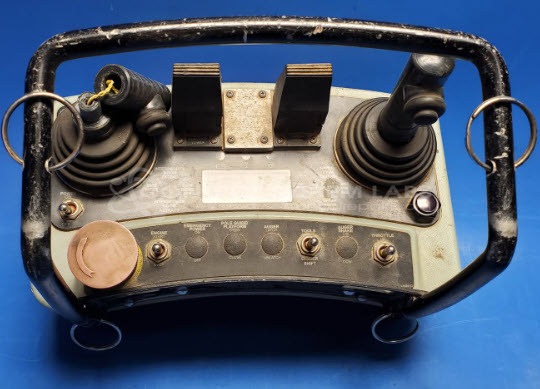

Product Overview: The Omnex T245 Transmitter (ASSY-1993-01) is a battery-powered wireless controller used for remote operation of industrial equipment such as cranes and aerial booms. It features dual joystick controls for multi-axis movement (up/down, left/right, in/out), multiple function buttons, and an integrated e-stop for safety. The unit communicates with a paired receiver to execute machine commands and includes status indicator lights for operational feedback. Its rugged housing with protective boots makes it suitable for harsh industrial environments.
Category: Transmitter
Manufacturer: Omnex
Manufacturer Part Number: ASSY-1993-01
Series: T245 Transmitter
Include mating receiver to be tested with this
Common Failures
Common issues include faulty joystick functionality, particularly with the inability of the joystick to register up and down movements, primarily due to broken solder joints on the hall position sensor. Other symptoms have been a loose joystick top and a torn rubber boot.
Repair Approach
Repair activities included resoldering broken connections on the hall position sensor to restore joystick functionality. Loose joystick components were secured using epoxy adhesive, and a worn rubber boot was replaced. Preventative measures included the application of new RTV to prevent water intrusion.
Testing & Quality
Diagnostic and functionality testing were conducted. Each button and joystick movement was verified for proper operation. The unit passed all required functional tests, including button press and connectivity checks.
Service and repair your broken Omnex part
We can repair your Omnex model ASSY-1993-01 in our facility. Let our skilled technicians get your Omnex back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
