Repair Price: $ 1,864.00
Purchase
CSL Part Number: 122078
Product Overview: The Omnex T245 Transmitter (ASSY-1326-14 R8.0) is a handheld remote control transmitter used for wireless operation of industrial equipment such as cranes, hoists, and material handling systems. It features multiple control switches and paddles for command input, communicates via RF transmission to a paired receiver, and includes an emergency stop button for safety. The unit uses a DB50 connector interface and is built for rugged industrial environments requiring corrosion protection.
Category: Transmitter
Manufacturer: Omnex

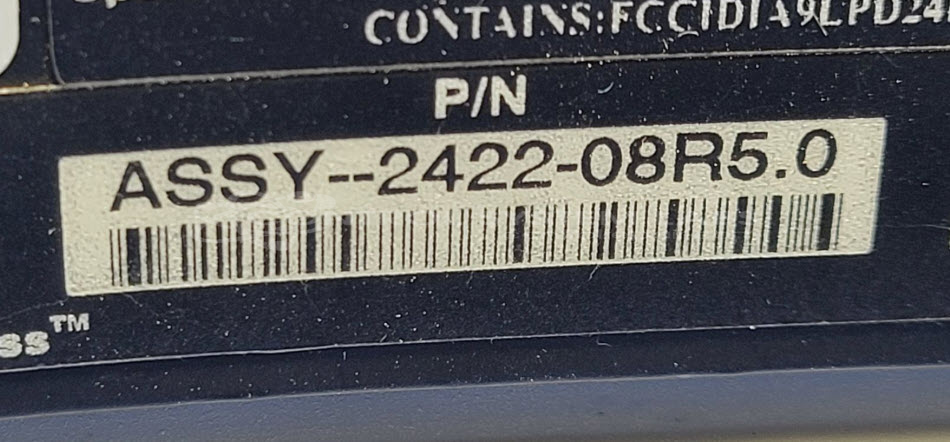

Manufacturer Part Number: ASSY-2422-08R5.0
Series: T245 Transmitter
Common Failures
Typical problems encountered include malfunctioning operation due to defective power switches and corrosion issues within connectors. E-stop buttons can become loose over time, and corrosion damage may affect traces on the circuit board.
Repair Approach
Repairs involve replacing defective components such as toggle switches and connectors. For corrosion protection, VpCI devices are replaced. Corrosion inside DB50 connectors is evaluated and addressed as needed, with proper bridging of broken traces on circuit boards. E-stop buttons are serviced to address loosening issues.
Testing & Quality
After repairs, each switch's functionality is verified where possible. Additional measures include applying UV solder masks to repaired traces and ensuring new components are securely fitted with RTV for protection.
Repair your broken Omnex part
We can repair your Omnex model ASSY-2422-08R5.0 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
