Repair
Repair Price: $ 2,612.00
Purchase
CSL Part Number: 81027

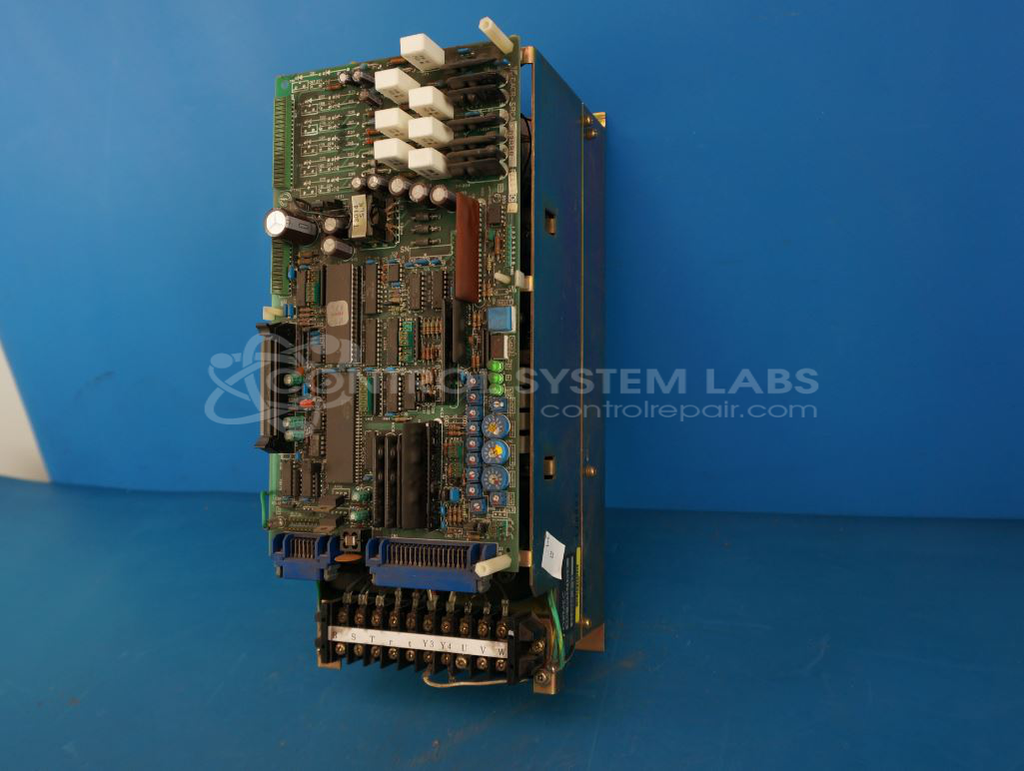

Product Overview: The SAC-S Series AC ServoDrive is a brushless servo amplifier designed to control AC servo motors in industrial motion control applications. This 230VAC, 3.8 amp model features IGBT-based power output stages and integrated control circuitry for precise speed and position control. Commonly used in paper converting, packaging, and automated manufacturing equipment, it provides closed-loop motor control through standard analog or digital command inputs. The drive includes onboard power supply regulation and hybrid driver modules for motor phase commutation.
Category: Servo Controls
Manufacturer: Ormec Systems Corp
Manufacturer Part Number: SAC-S03A/101B
Series: SAC-S Series Servodrive
Common Failures
Frequent issues include shorted rectifiers on the positive bus, blown fuses, damaged power supply components, and defective output modules. Several cases involved electrolytic capacitors on the control board. Hybrid driver module failures were also noted.
Repair Approach
To address these issues, defective components such as rectifiers, fuses, power supply components, and output modules were replaced. Capacitors on control boards and power supplies were replaced when found to be defective or degrading. Nylon standoffs were also replaced when broken.
Testing & Quality
Repaired units underwent testing, including tests with motors and test equipment to verify operational integrity. Tests confirmed speed change, direction, and enable functions. Each unit was evaluated to verify functionality before clearance.
Service and repair your broken Ormec Systems Corp part
We can repair your Ormec Systems Corp model SAC-S03A/101B in our facility. Let our skilled technicians get your Ormec Systems Corp back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
