Repair
Repair Price: $ 994.00
Purchase
CSL Part Number: 104438

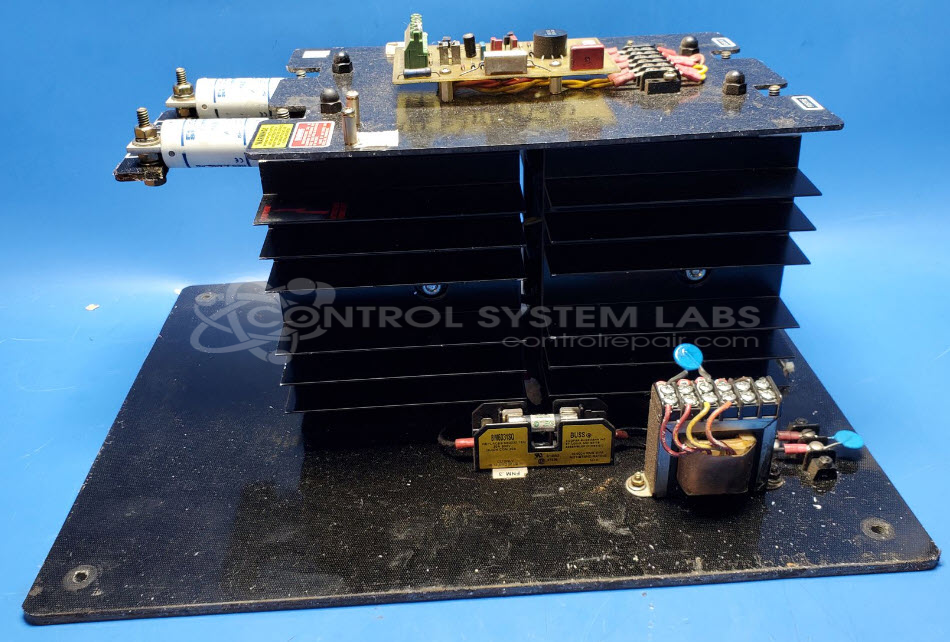

Product Overview: The Payne Engineering Model 36D-1-80 is a single-phase power controller that converts 120VAC input to variable DC output for controlling inductive or resistive DC loads up to 80 amperes. It uses SCR-based phase control circuitry to regulate DC voltage, commonly found in hydropower turbine excitation systems and industrial motor field control applications. The unit features adjustable output responding to an external control signal and incorporates semiconductor fuses for protection.
Category: Power Controls
Manufacturer: Payne Engineering
Manufacturer Part Number: 36D-1-80
Series: Model 36D Power Controller
Common Failures
This product may experience issues such as blown fuses upon connection or failure to power on. During evaluation, technicians may identify components such as capacitors or SCRs that require replacement.
Repair Approach
Repairs typically involve diagnostic testing to isolate faulty components. Common corrective measures include replacing defective capacitors and SCRs, as well as ensuring proper fuse ratings. Additional preventative component replacements may be performed to improve reliability.
Testing & Quality
Following repair, each unit undergoes diagnostic testing and burn-in testing to confirm functionality and reliability. Successfully repaired units are verified to operate within expected parameters.
Service and repair your broken Payne Engineering part
We can repair your Payne Engineering model 36D-1-80 in our facility. Let our skilled technicians get your Payne Engineering back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
