Repair
Repair Price: $ 354.00
Purchase
CSL Part Number: 4384

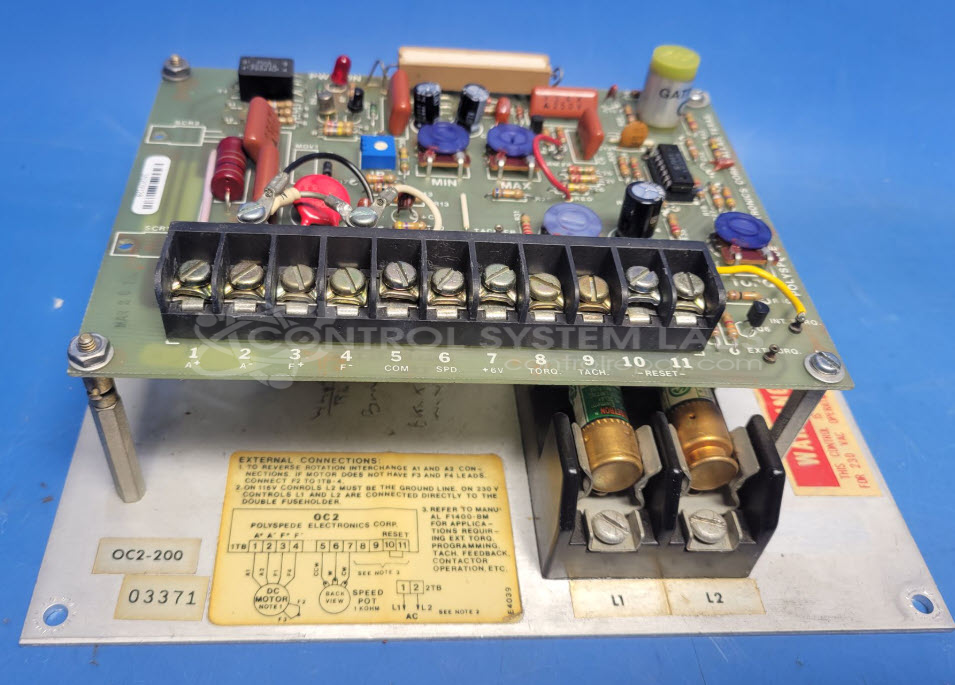

Product Overview: The Polyspede E1507-03 OC2 Motor Card is a DC motor speed control board used in paper processing equipment. It regulates armature voltage up to 180VDC for brushed DC motors, typically ranging from 3/4 to 1 horsepower. The card includes integrated SCR power circuitry, speed adjustment potentiometers, and tachometer feedback capability. It operates on 110VAC or 220VAC input and produces a 120Hz output waveform. This card requires the separate OC2 Control Card Base for mounting and connection.
Category: Motor Controls
Manufacturer: Polyspede
Manufacturer Part Number: E1507-03
Series: OC2 Control Card
Also Known As(AKA): E15702d
Send circuit with base still attached do not separate we need to test together.
Common Failures
Several recurring issues were identified during evaluation, including defective capacitors, defective diodes, and shorted power modules. There were also instances of cold solder joints and overheating. Additionally, improper application of conformal coating causing connectivity issues was observed.
Repair Approach
Repairs focused on replacing defective parts such as capacitors, diodes, and power modules. Cold solder joints were resoldered, and conformal coating was reapplied where needed. In cases of extensive damage, circuit boards were repaired and burnt traces were reconstructed.
Testing & Quality
Each unit underwent burn-in testing to verify functionality. Testing duration varied from 3 to 4 hours, involving output waveform observation and adjustments to ensure correct voltage outputs. All repairs were reviewed by technicians, and units were retested post-repair to confirm that issues were resolved.
Service and repair your broken Polyspede part
We can repair your Polyspede model E1507-03 in our facility. Let our skilled technicians get your Polyspede back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
