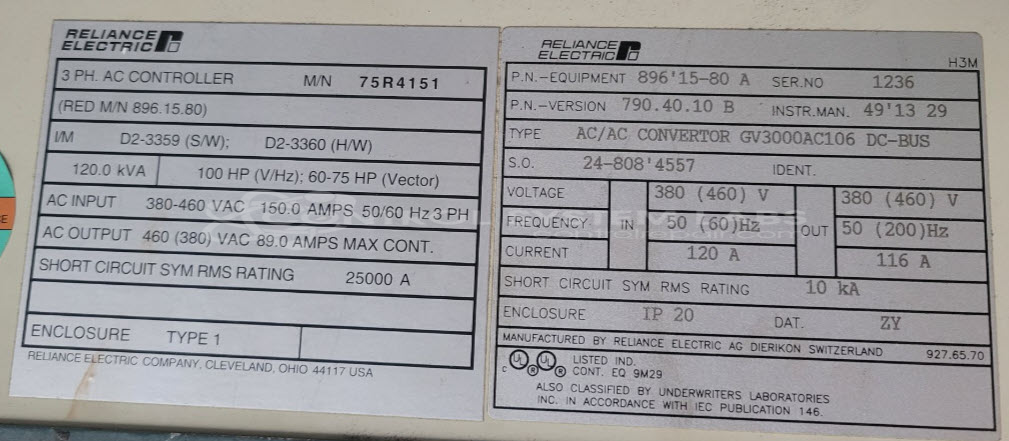

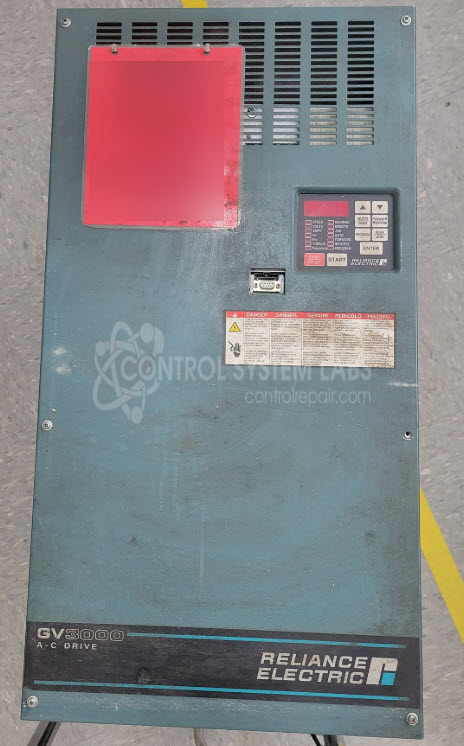

Reliance Electric 75R4151 GV3000 Series 120kVA 60-100HP 3Phase 380-460VAC 150A 60Hz In, 380-460VAC 89A Out AC Drive
Repair
Repair Price: $ 9,994.00
Purchase
CSL Part Number: 23441
Product Overview: The Reliance Electric GV3000 Series AC drive is a variable frequency drive designed to control three-phase AC motors in the 60-100 horsepower range. It accepts 380-460VAC three-phase input at 150A and 60Hz, delivering 380-460VAC output at 89A with a power rating of 120kVA. This drive uses vector control technology to provide precise motor speed and torque regulation in industrial applications including pumps, fans, conveyors, and paper processing machinery. The GV3000/SE series features a front-mounted keypad interface for programming and monitoring operational parameters.
Category: AC Motor Controls
Manufacturer: Reliance Electric
Manufacturer Part Number: 75R4151
Series: GV3000/SE AC Drive
Also Known As(AKA): GV3000AC106
Common Failures
This product may experience issues with the main control board and the drive motor. Some units exhibit display problems or motor power issues despite proper command signals. Problems with the overlay, including non-responsive buttons, have also been observed.
Repair Approach
Repair efforts may involve addressing component issues on the control board, including capacitor-related faults. Replacing the overlay and non-functional buttons can restore functionality in some cases. Units with extensive physical damage may be determined to be Beyond Economic Repair after evaluation.
Service and repair your broken Reliance Electric part
We can repair your Reliance Electric model 75R4151 in our facility. Let our skilled technicians get your Reliance Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
