Repair Price: $ 1,288.00
Purchase
CSL Part Number: 107544

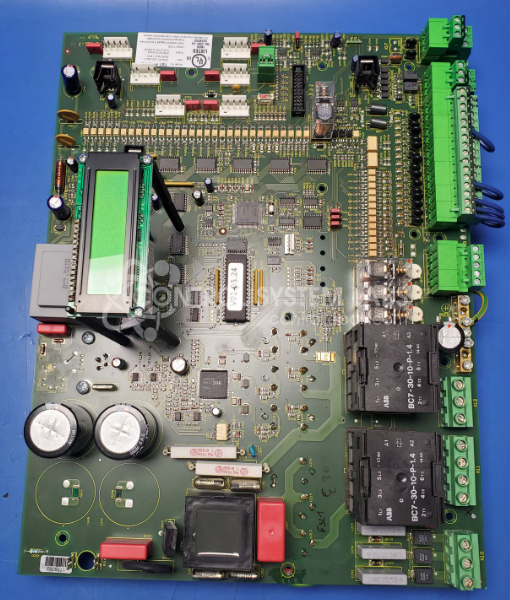

Product Overview: The System 4 Door Control Board is a power control module used in Rytec Corporation's System 4 Drive & Control for high-speed industrial doors. This board manages door operation, motor control, and safety functions in facilities requiring rapid access such as warehouses, manufacturing plants, and distribution centers. It incorporates relay control circuits, power switching components including IGBTs and rectifiers, and programmable logic via EPROM. The design includes multiple fused circuits and contactor controls for safe and reliable door movement.
Category: Power Controls
Manufacturer: Rytec Corporation
Alternate Manufacturer Names: ABB
Manufacturer Part Number: TST FU3P-AP
Other Synonyms: ABB
Common Failures
Typical issues with this product include non-functional power-up and circuit board damage. Other common findings include open resistors, damaged wiring, and burned components such as LEDs. Units may also show signs of previous repair attempts or missing protective components.
Repair Approach
Once the unit is received and reviewed, we can provide a quotation before charges are incurred. Repairs typically involve identifying and replacing defective components. Our technicians use diagnostic tools to inspect key areas for irregularities. Damaged parts are replaced when the board is determined to be serviceable.
Testing & Quality
After repair, products undergo power-up testing and functional verification. Quality checks are conducted by qualified technicians to verify successful repairs. We draw on our experience with similar units to enhance repair accuracy.
Limited Repair
The Rytec Corporation part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Rytec Corporation part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
