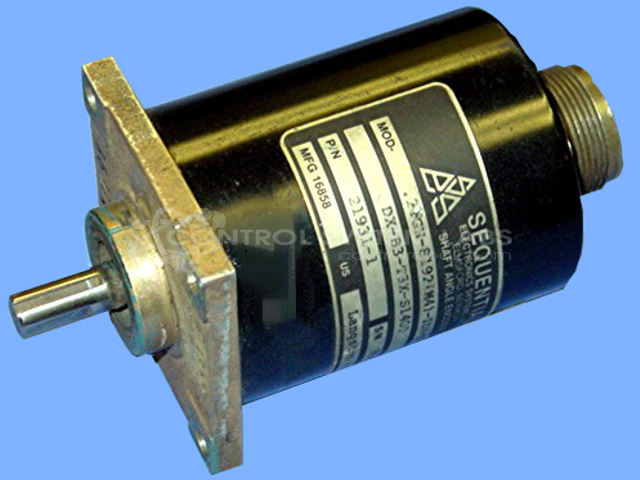

Sequential Electronic Systems 25GN-8192(M4)IDZ-E2D-5V-HI-DX- Straight Shaft Encoder
Repair
Repair Price: $ 640.00
Purchase
CSL Part Number: 73619
Product Overview: A rotary optical encoder with a straight shaft, providing position and speed feedback by generating electrical pulses as the shaft rotates. Rated at 8192 pulses per revolution with 5V output, it is used in motion control and industrial automation systems requiring precise rotational measurement.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Sequential Electronic Systems
Manufacturer Part Number: 25GN-8192(M4)IDZ-E2D-5V-HI-DX-
Also Known As(AKA): 22097 P/N
Common Failures
Some units exhibited control problems attributed to aged components, such as capacitors, and issues with missing foil around optics. These issues were identified during evaluation.
Repair Approach
Repairs typically involved replacing aged components like capacitors and addressing any issues with missing or damaged foil. Units were also cleaned and thoroughly resoldered to ensure proper connections.
Testing & Quality
After repairs, each unit underwent comprehensive testing to confirm proper functionality according to design specifications. Units were verified to function with the expected duty cycle and passed all procedural checks before being approved for return shipment.
Service and repair your broken Sequential Electronic Systems part
We can repair your Sequential Electronic Systems model 25GN-8192(M4)IDZ-E2D-5V-HI-DX- in our facility. Let our skilled technicians get your Sequential Electronic Systems back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
