Home >  Sequential Electronic Systems PS110005-25GN-1000-ID-E2D- Angle Connector Encoder

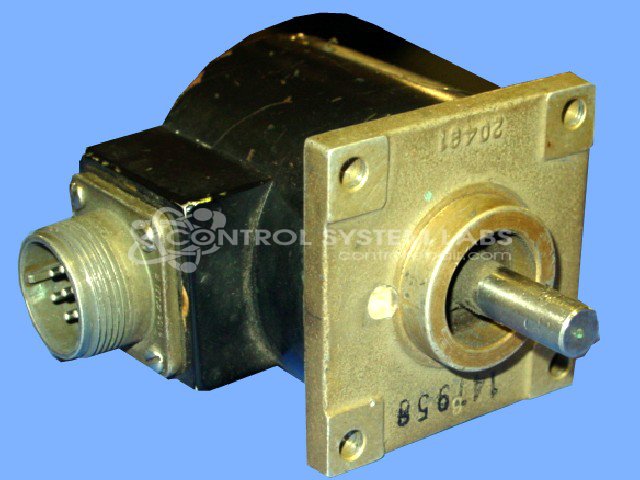

Sequential Electronic Systems PS110005-25GN-1000-ID-E2D- Angle Connector Encoder

Repair

Repair Price: $ 680.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/101939/image_1920?unique=f16fac2
  • Condition

Purchase Price: $ 0.00 $ 0.00 680.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 66500
Product Overview: An angle connector rotary encoder that converts shaft rotation into electrical pulses for position and speed feedback in industrial motion control systems. It provides 1000 pulses per revolution with quadrature A and B channels (A leads B by 90 degrees), operates on 5 Vdc, and features an incremental optical design.
Category: Encoders / Tachometers / Resolvers
Manufacturer: Sequential Electronic Systems
Manufacturer Part Number: PS110005-25GN-1000-ID-E2D-

Complete P/N is PS110005-25GN-1000-ID-E2D-5V-H1-D1

Common Failures

One common failure reported is a burnt component inside the encoder, which may result in the unit not counting or a blown control fuse.

Repair Approach

Our repair approach typically involves replacing faulty components as identified during evaluation. Following component replacement, the encoder is cleaned, tested, and adjusted to confirm proper operation and pulse alignment.

Testing & Quality

After repair, the encoder is tested to verify that it operates with the intended duty cycle and pulse alignment, including compatibility with a 5 Vdc system.

Service and repair your broken Sequential Electronic Systems part


We can repair your Sequential Electronic Systems model PS110005-25GN-1000-ID-E2D- in our facility. Let our skilled technicians get your Sequential Electronic Systems back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
