Repair
Repair Price: $ 2,844.00
Purchase
CSL Part Number: 31542

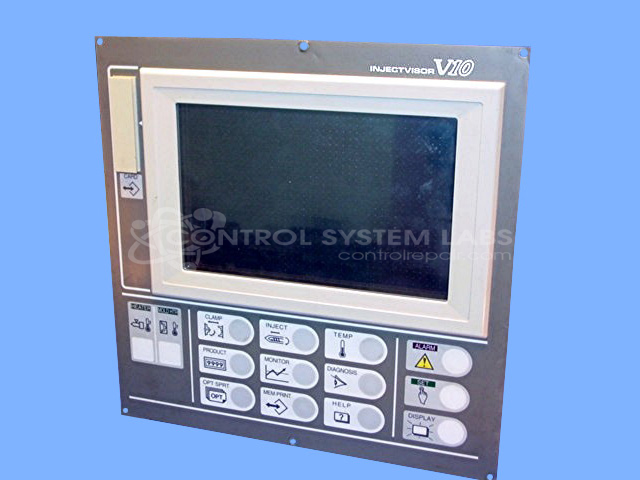

Product Overview: The Toshiba Machine Injectvisor V10 is an operator interface panel designed for Toshiba injection molding machines. It features a 9.8-inch touchscreen LCD display (640x400 or 640x480 resolution), membrane keypad with tactile switches, and serial communication for machine control and monitoring. The unit integrates display control, touch input, front panel buttons with LED indicators, and an internal power supply. It serves as the primary human-machine interface (HMI) for controlling injection molding parameters, monitoring machine status, and executing setup procedures on Toshiba plastic injection molding equipment.
Category: Operator & Control Panels
Manufacturer: Toshiba Machine
Manufacturer Synonyms: Shibaura Machine
Manufacturer Part Number: V10MMI(E)
Series: INJECTVISOR Injection Machine Control
Also Known As(AKA): INJECTVISOR V10
Send in for evaluation. If new screen needed will be quoted additionally.
Common Failures
The Toshiba Injectvisor V10 may experience issues with touch screen functionality and display components. Symptoms can include unresponsive touch screens, failure to calibrate, displays showing vertical lines or incorrect colors, and screen lock-ups. Physical damage and wear can also affect buttons or displays.
Repair Approach
Repairs may involve replacing defective components such as touch screen glass, LCD displays, capacitors, and tactile switches. In some cases, circuit board repairs are necessary to restore functionality. If parts are unavailable or damage is excessive, the unit may be deemed Beyond Economic Repair (BER) and returned without repair.
Testing & Quality
Post-repair, units undergo diagnostic testing and burn-in procedures. This includes testing the display, touch screen interface, communication ports, and keypad functionality. Repairs are verified by experienced technicians to maintain quality control standards.
Service and repair your broken Toshiba Machine part
We can repair your Toshiba Machine model V10MMI(E) in our facility. Let our skilled technicians get your Toshiba Machine back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
