Repair
Repair Price: $ 2,552.00
Purchase
CSL Part Number: 114070

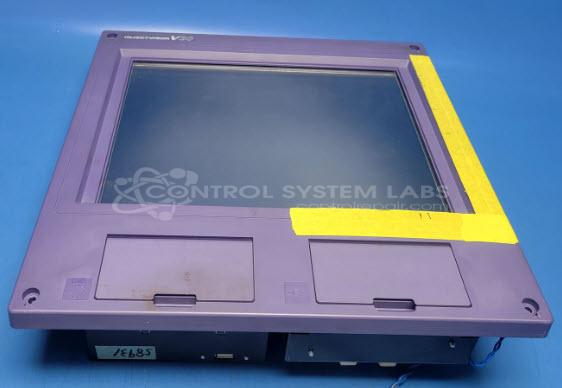

Product Overview: The Injectvisor V30 is an operator interface and control panel designed by Toshiba Machine for plastic injection molding machines. It combines an HMI touchscreen display with integrated control electronics to manage machine parameters, monitor process conditions, and provide operator interaction during molding cycles. The V30MMI-3 configuration features an LCD touchscreen that requires calibration with the host PLC for proper touch response. This panel communicates via RS232 serial interface and uses custom drivers stored in the connected machine controller. Common applications include monitoring injection pressure, temperature zones, cycle timing, and adjusting process setpoints on Toshiba injection molding equipment.
Category: Operator & Control Panels
Manufacturer: Toshiba Machine
Manufacturer Synonyms: Shibaura Machine

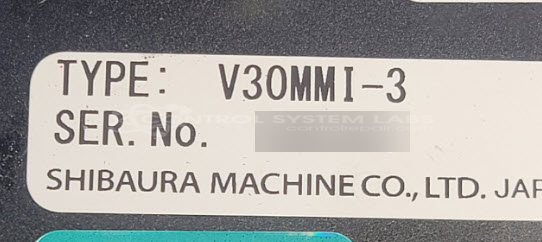

Manufacturer Part Number: V30MMI-3
Series: INJECTVISOR Injection Machine Control
Touch Screen and LCD repairs to be quoted after evaluation. For touchscreen calibration that must be done while connected to the PLC in the machine, we can not do that here.
Common Failures
Some units may have issues related to touchscreen calibration. While the hardware operates correctly during our evaluation, with no visible screen artifacts or boot issues, calibration must be completed when the unit is installed in your system.
Repair Approach
Repair efforts include diagnostic testing and verifying the touch panel's functionality using PC-based software. The touchscreen responds as expected during these tests. However, hardware replacement or driver updates are limited as custom drivers are located in the customer's setup.
Testing & Quality
All units undergo testing to confirm they power on correctly and display boot screens without issues. Touchscreen tests confirm functionality, but final calibration is a customer-based process to be completed post-installation. Hardware faults are typically not detected during our evaluation.
Service and repair your broken Toshiba Machine part
We can repair your Toshiba Machine model V30MMI-3 in our facility. Let our skilled technicians get your Toshiba Machine back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
